Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  3. Remove the retaining screws from the multifunction switch (2).
  4. Remove the multifunction switch (2) from the steering column.
  5. Disconnect the electrical connectors from the multifunction switch (2).

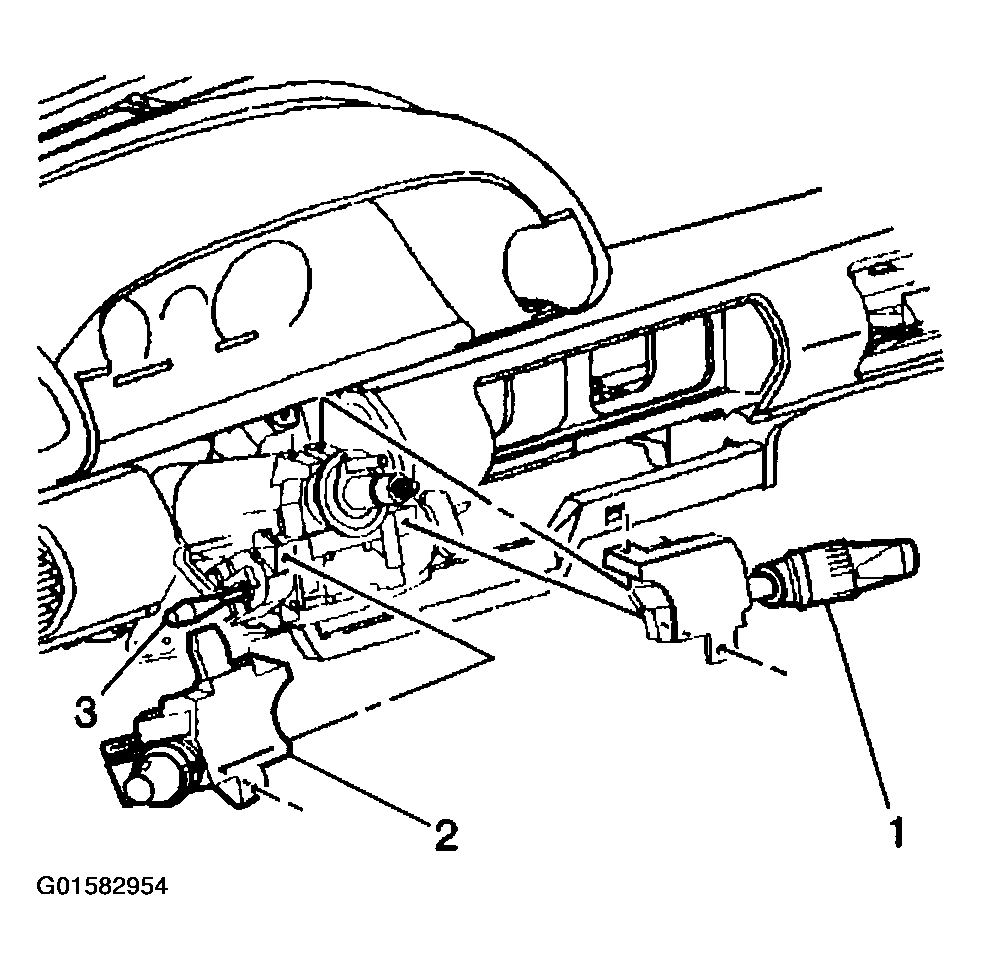

    6. Fig 1: Locating Multifunction Switch
    G01582954Courtesy of GENERAL MOTORS CORP.
