Lock Housing Assembly - Disassemble (Off Vehicle)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the lock cylinder. Refer to Ignition Lock Cylinder Replacement - On Vehicle (Without Key)  Or Ignition Lock Cylinder Replacement - On Vehicle (With Key)  .

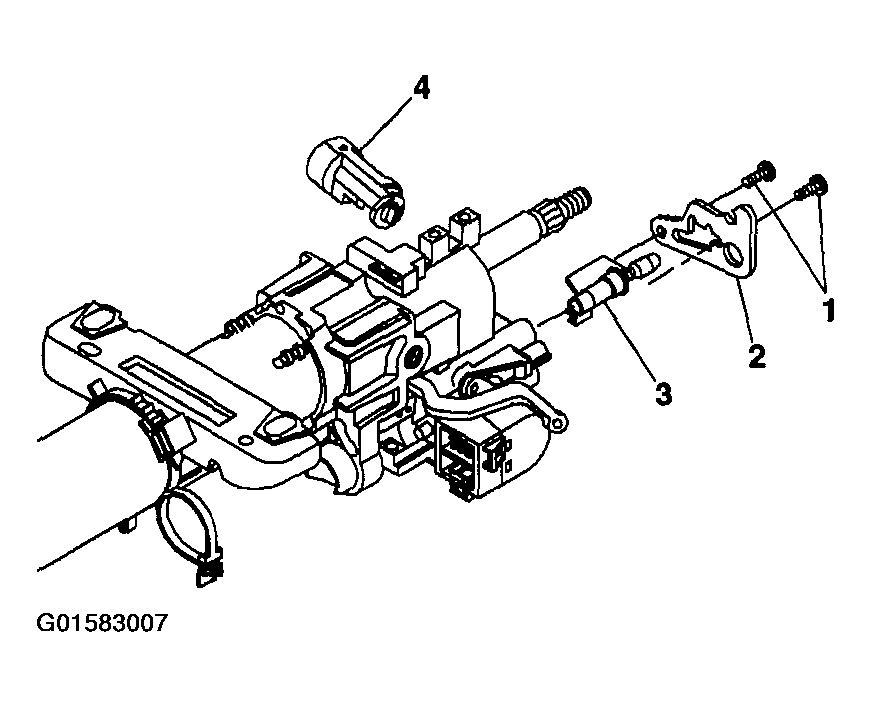

    Fig 1: Lock Cylinder
    G01583007Courtesy of GENERAL MOTORS CORP.
  3. Remove the steering column tilt head housing. Refer to Steering Column Tilt Head Housing - Disassemble (Off Vehicle) .
  4. Remove the 2 tapping screws (1).
  5. Remove the lock bolt support bracket (2).
  6. Remove the lock bolt assembly (3).
  7. Remove the ignition lock actuator assembly (4).
