Inflatable Restraint Steering Wheel Module Coil - Disassemble (Off Vehicle): Disassembly

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering wheel. Refer to Steering Wheel Replacement .
  3. Remove the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
  4. Remove the trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  5. Remove the steering column. Refer to Steering Column Replacement .
  6. Inspect the steering column for accident damage. Refer to Steering Column Accident Damage Inspection - Off Vehicle .
  7. Install the steering column and J 41352  into a vise.

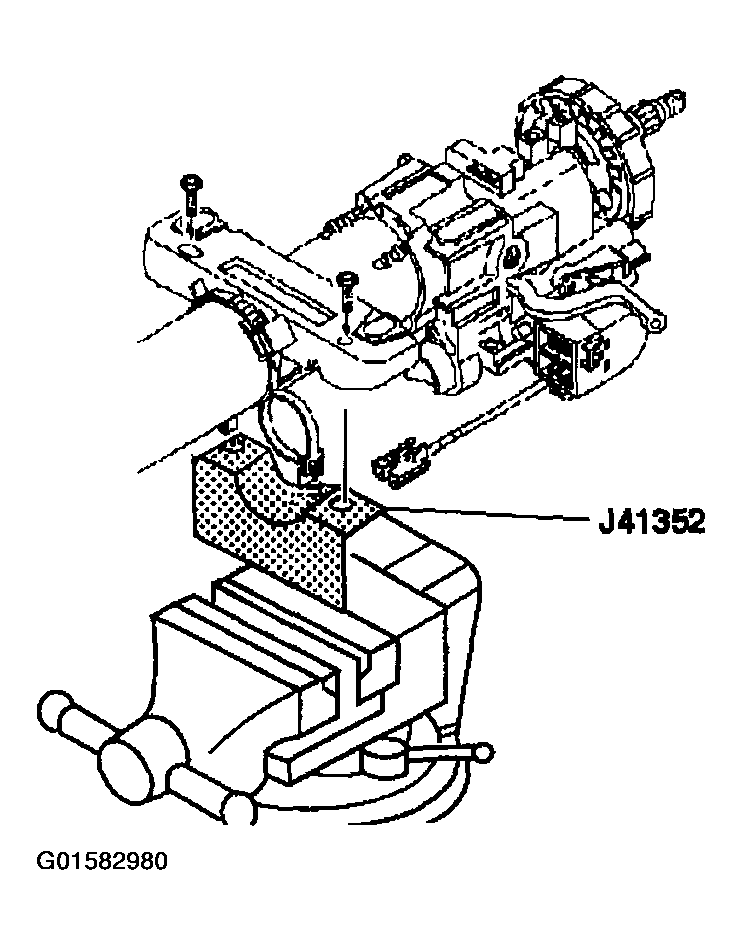

    8. Fig 1: Installing Steering Column & J 41352 Into A Vise
    G01582980Courtesy of GENERAL MOTORS CORP.
  8. Remove all wire harness straps from the wire harness assembly.
    9. Fig 2: Steering Column Wiring Harness
    G01582981Courtesy of GENERAL MOTORS CORP.
  9. Remove the retaining ring.
  10. Remove the inflatable restraint steering wheel module coil down lead from the wire restraint clip (3).
  11. Remove the inflatable restraint steering wheel module coil (1).
  12. Remove the wave washer (2).

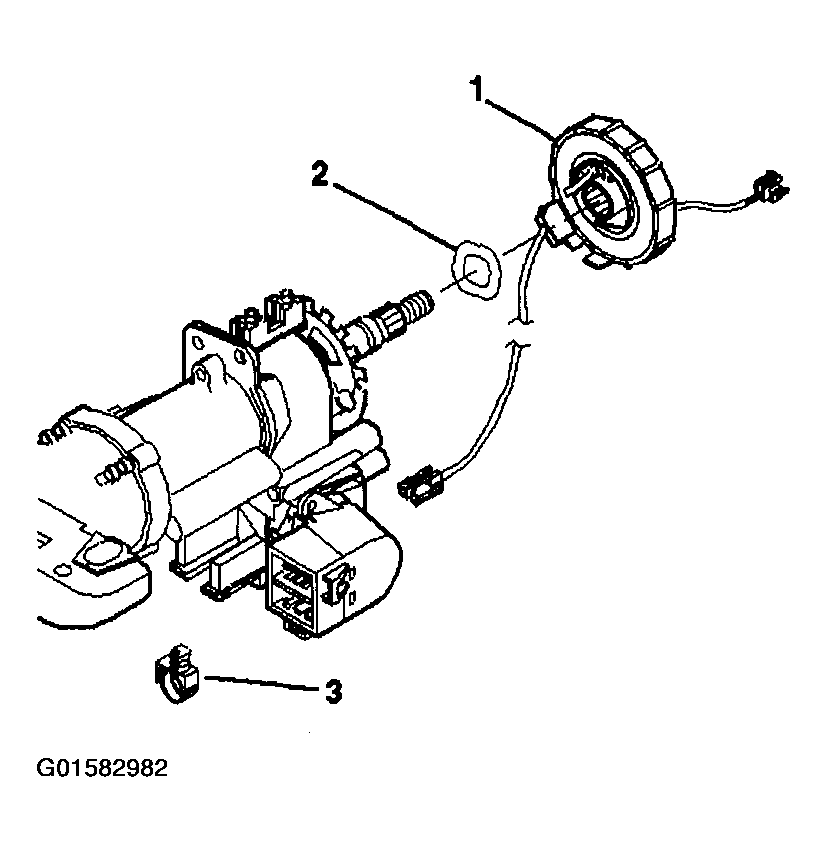

    Fig 3: Steering Column Inflatable Restraint Steering Wheel Module Coil & Wave Washer
    G01582982Courtesy of GENERAL MOTORS CORP.
