Ignition Switch Assembly - Disassemble (Off Vehicle): Disassembly

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering wheel. Refer to Steering Wheel Replacement .
  3. Remove the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
  4. Remove the trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  5. If necessary, remove the multifunction switch. Refer to Multifunction, Turn Signal & Hazard Switch Replacement - On Vehicle .
  6. Remove the steering column. Refer to Steering Column Replacement .
  7. Inspect the steering column for accident damage. Refer to Steering Column Accident Damage Inspection - Off Vehicle .
  8. Install the steering column and J 41352  into a vise.
  9. Remove the 2 tapping screws.
  10. Remove the ignition switch assembly.

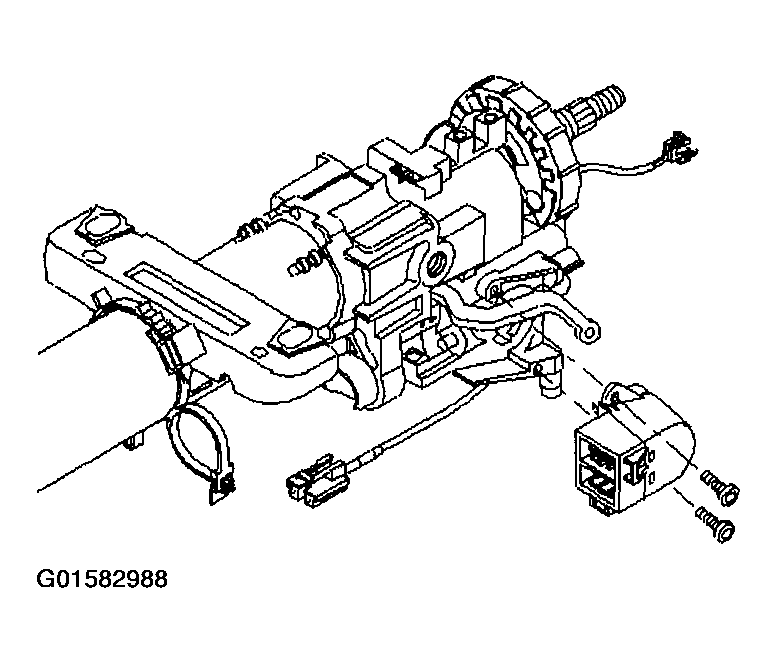

    Fig 1: Ignition Switch Assembly
    G01582988Courtesy of GENERAL MOTORS CORP.
