Ignition Switch Assembly - Assemble (Off Vehicle): Assembly

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ignition switch assembly.
  2. Install the 2 tapping screws. Tighten the screws to 1.5 N.m (13 lb in).

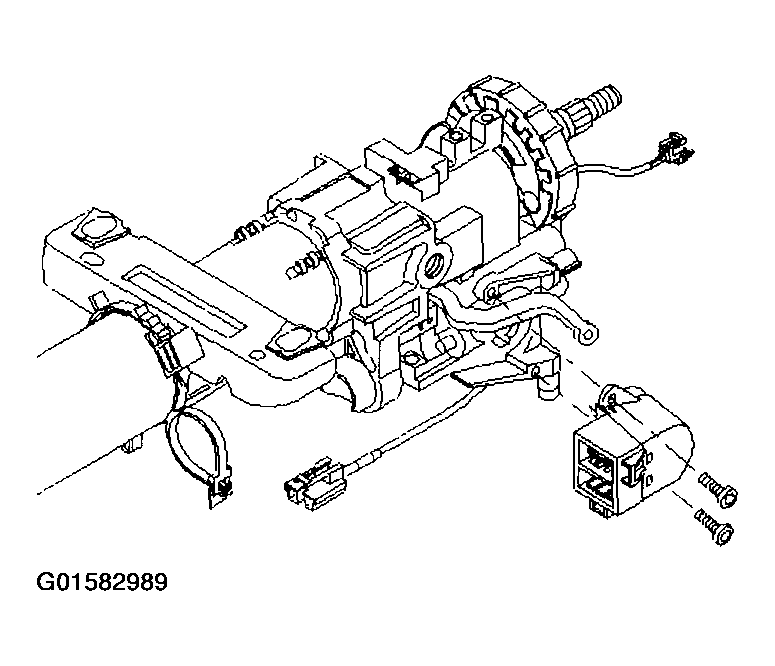

    Fig 1: Ignition Switch Assembly
    G01582989Courtesy of GENERAL MOTORS CORP.
  3. Remove the steering column and J 41352  from the vise.
  4. Install the steering column. Refer to Steering Column Replacement .
  5. If necessary, install the multifunction switch. Refer to Multifunction, Turn Signal & Hazard Switch Replacement - On Vehicle .
  6. Install the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
  7. Install the steering wheel. Refer to Steering Wheel Replacement .
  8. Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
