Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disable the supplemental inflatable restraint (SIR) system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  3. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  4. Turn the ignition lock cylinder (1) to the RUN position.
  5. Push the locking button (2) on the rear of the housing assembly (1).

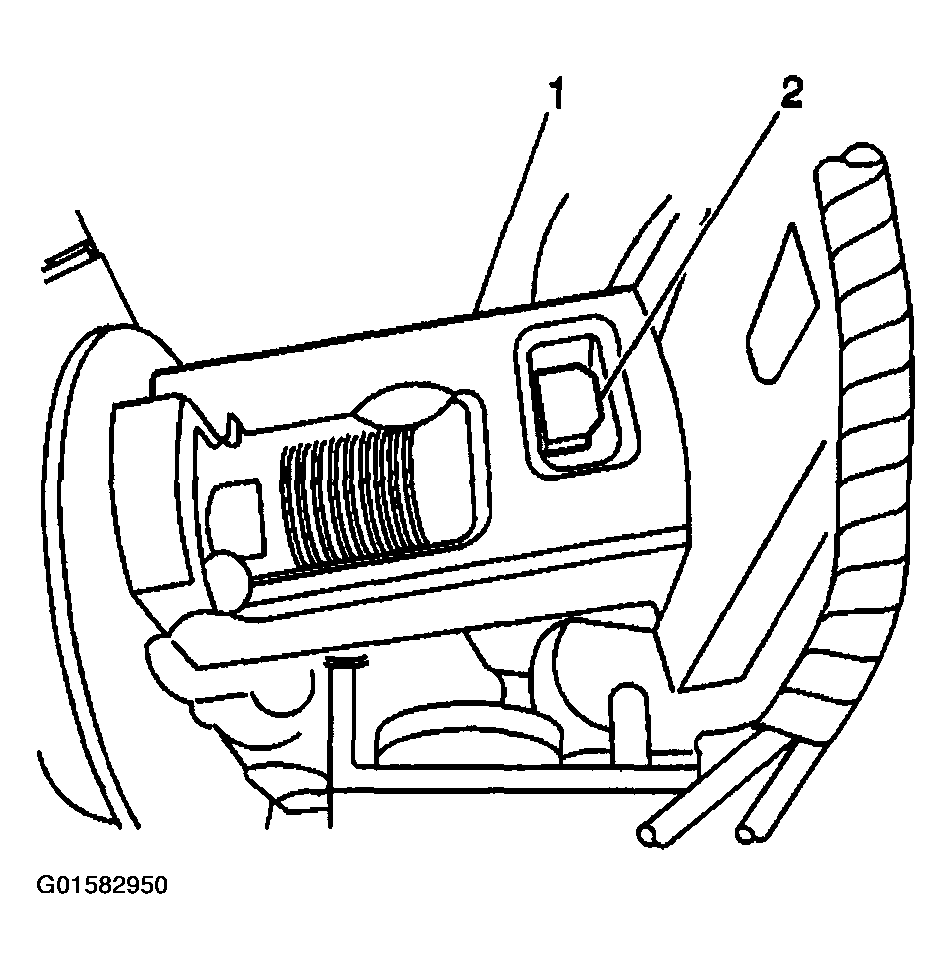

    6. Fig 1: Locating Ignition Switch Locking Button
    G01582950Courtesy of GENERAL MOTORS CORP.
  6. Remove the ignition lock cylinder by pulling outward from the steering column.
  7. Disconnect the electrical connector (3) from the ignition lock cylinder (1).
