Lock System Does Not Lock

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

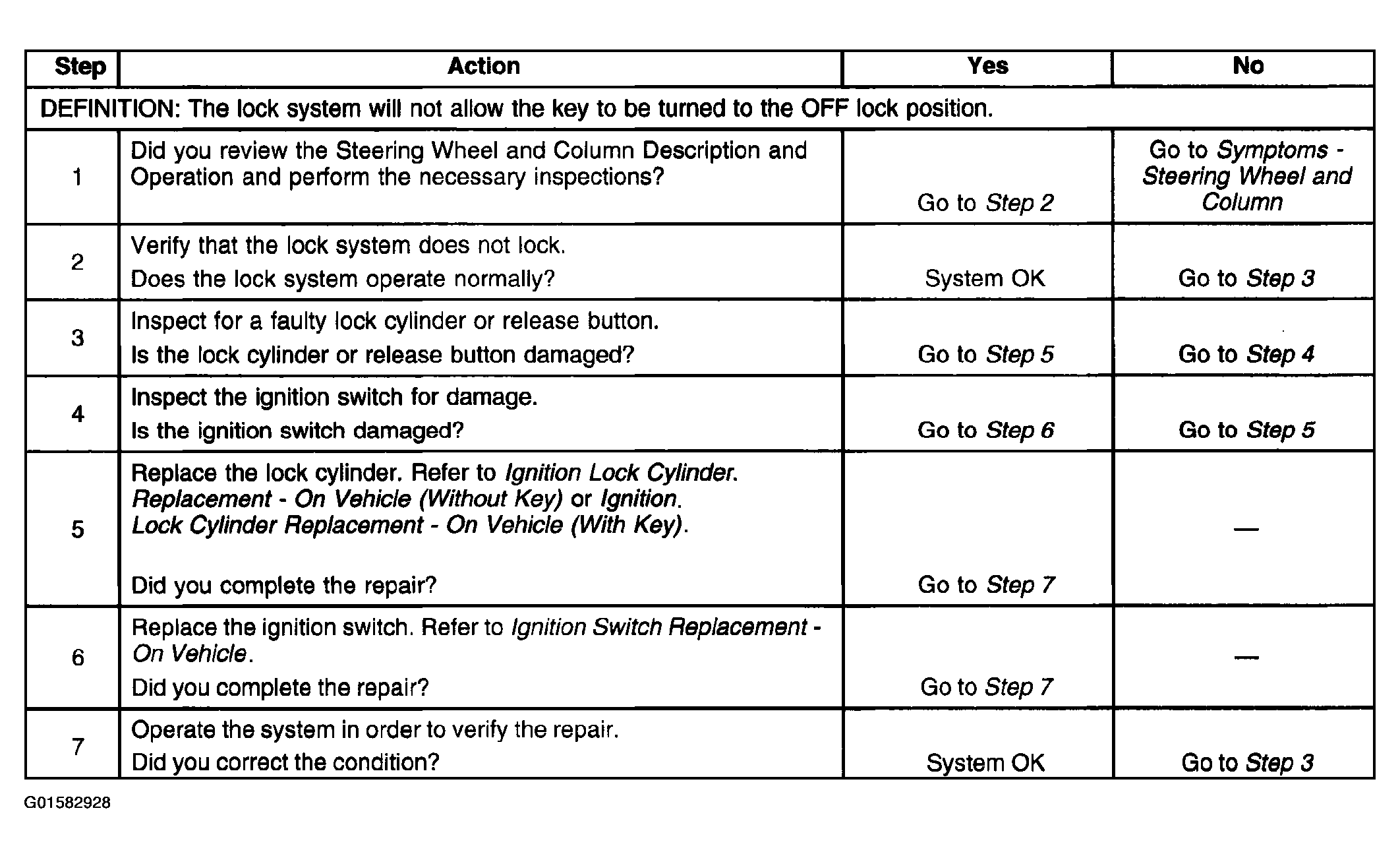

Fig 1: Lock System Does Not Lock Diagnostic Flow Chart
G01582928Courtesy of GENERAL MOTORS CORP.
