Steering Column Disassembled View (Tilt Column)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

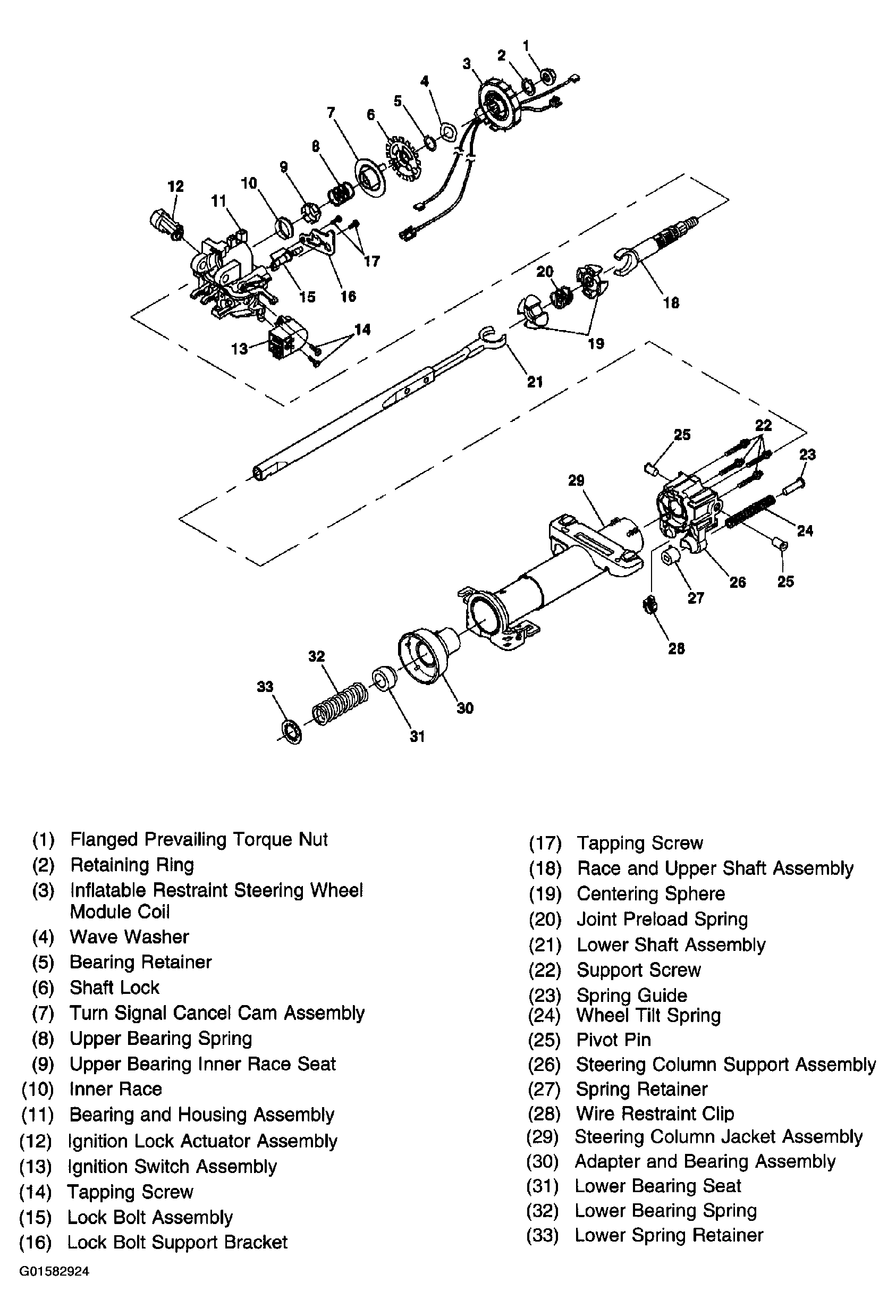

Fig 1: Exploded View Of Tilt With Floor Shift Steering Column
G01582924Courtesy of GENERAL MOTORS CORP.
