Transmission Cooler Line Seals Removal

WARNING: This page is about a different car, the 2004 Pontiac Sunfire, 2004 Chevrolet Classic, and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41239-10 Cooler Line Seal Removal. See Special Tools and Equipment .
J 45201 Cooler Line Seal Removal. See Special Tools and Equipment .

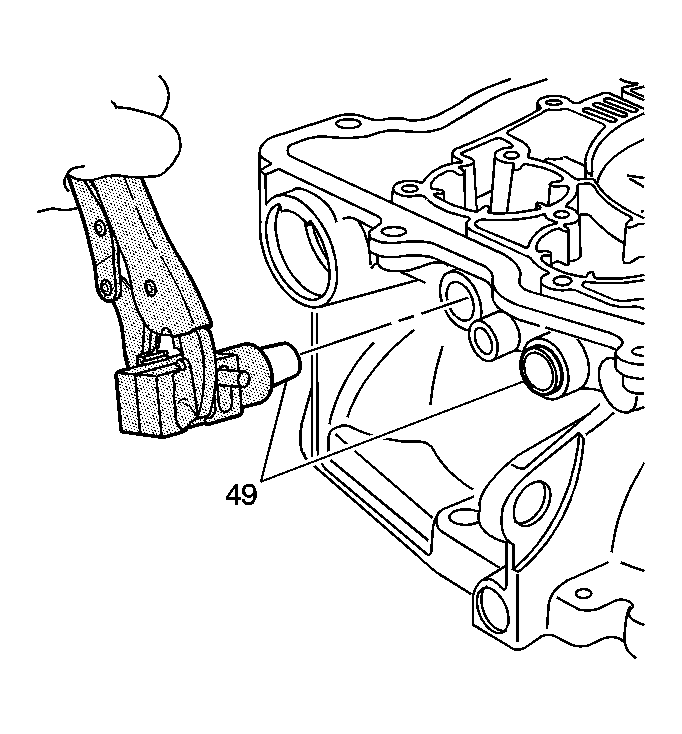

Fig 1: View Of Cooler Line Seal

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: If you have special tool J 41239-10 use step 1 and 2 only.

Install J 41239-10 between the cooler line seal (49) and the case.
It may be necessary to pivot J 41239-10 back and forth against the case to remove the seal.

Fig 2: Inserting J 45201 Into Cooler Line Seal Bore

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: If you have special tool J 45201 use step 3 - 6 only.

Insert J 45201 collet (2) fully into the cooler line seal bore.
Insert the forcing screw piece of the J 45201 (1) into J 45201 (2) and tighten.

Fig 3: Removing Cooler Line Seal With J 45201

Courtesy of GENERAL MOTORS CORP.

Thread the J 45201 collar (2) onto J 45201 (3) and tighten until the tool has removed the seal.
Use a pair of pliers to remove the cooler line seal from J 45201 .
