Reaction Internal Gear, Input Carrier Installation

WARNING: This page is about a different car, the 2004 Pontiac Sunfire, 2004 Chevrolet Classic, and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

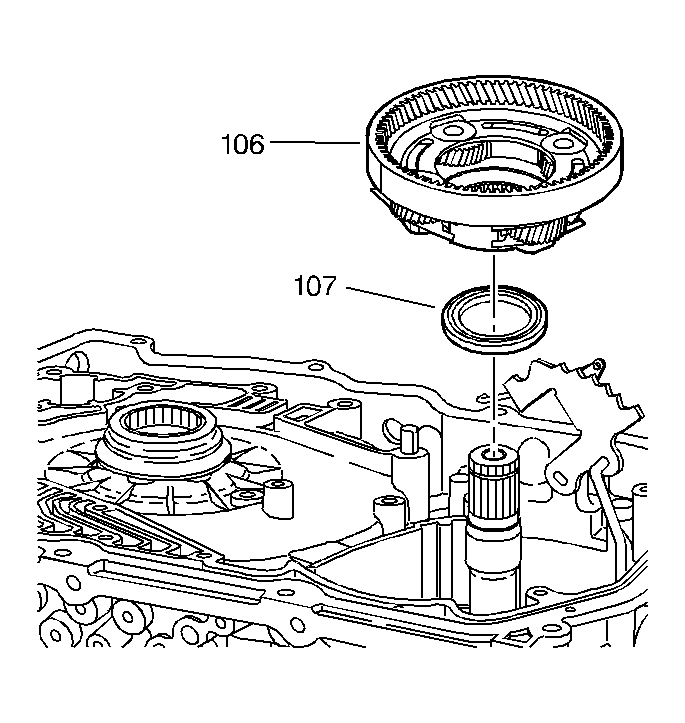

Fig 1: View Of Reaction Internal Gear And Input Carrier Assembly
GM20197Courtesy of GENERAL MOTORS CORP.
IMPORTANT: While installing the reaction internal gear and input carrier assembly, rotate the assembly in order to mesh the input carrier pinion gears to the input internal gear.

Install the reaction internal gear and input carrier assembly (106) into the transmission case.
