Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire, 2004 Chevrolet Classic, and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing Output Shaft Snap Ring
    GM479779Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not remove the output shaft (94) in the same manner as the stub shaft. In order to remove the output shaft (94), you must completely disassemble the transmission. Removing the output shaft (94) at this time will damage other transmission components.
  1. Remove snap ring (57).

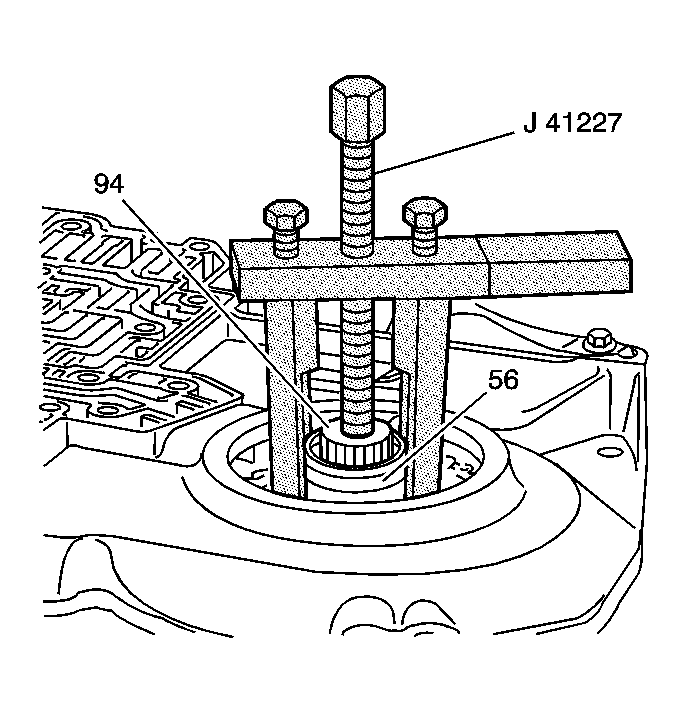

    2. Fig 2: Identifying J 41227
    GM479783Courtesy of GENERAL MOTORS CORP.
  2. Insert the legs of J 41227  under the output shaft sleeve (56).
  3. Tighten the center bolt of the J 41227  down in order to pull the output shaft sleeve (56) off the output shaft (94).
  4. Remove and discard the output shaft sleeve (56). Use the J 41227  . The output shaft sleeve is not reusable.
