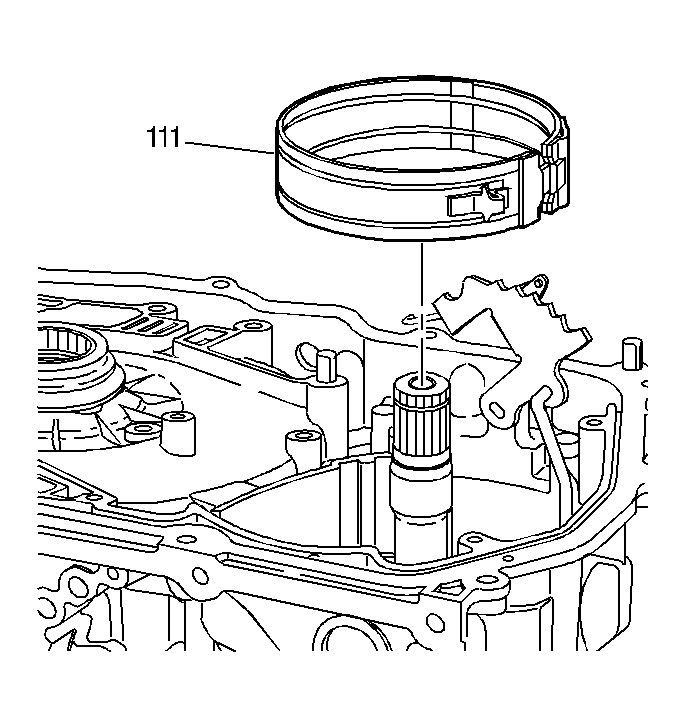

Fig 1: Locating Low/Reverse Band
Courtesy of GENERAL MOTORS CORP.
Install the low/reverse band (111) into the transmission case. Align the servo pin apply surface toward the bottom pan and hook the band into the band anchor pin inside the transmission case.
