Input Internal Gear, Forward Clutch Hub Removal

WARNING: This page is about a different car, the 2004 Pontiac Sunfire, 2004 Chevrolet Classic, and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

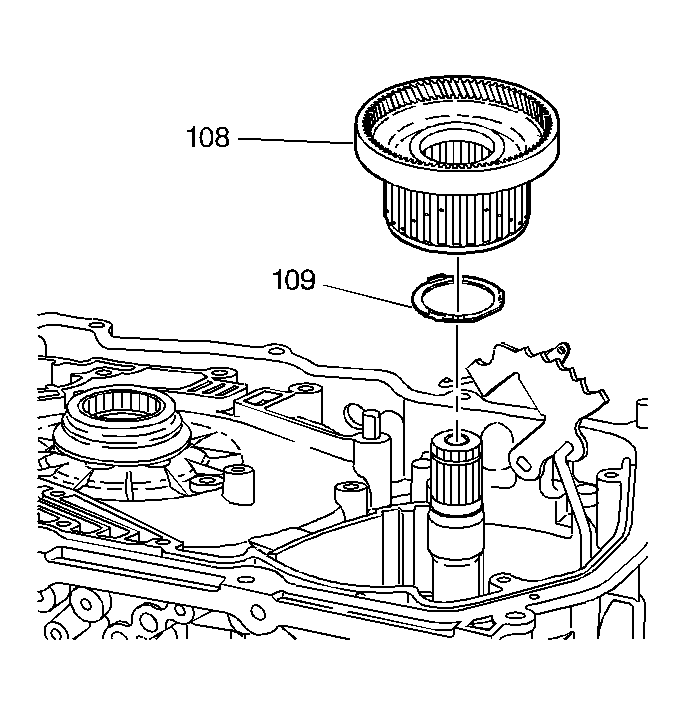

    Fig 1: View Of Forward Clutch Hub And Input Internal Gear Assembly
    GM20199Courtesy of GENERAL MOTORS CORP.
  1. Remove the input internal gear and forward clutch hub assembly (108).
  2. If the forward clutch hub to race thrust washer (109) did not remain with the forward clutch hub, remove the forward clutch hub to race thrust washer (109).
