Forward Clutch Support, Low Roller Clutch Install

WARNING: This page is about a different car, the 2004 Pontiac Sunfire, 2004 Chevrolet Classic, and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

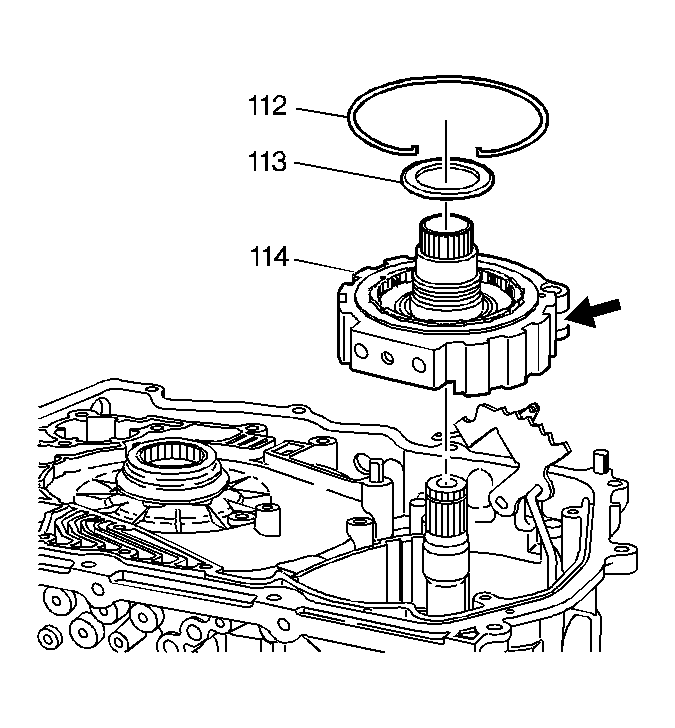

    Fig 1: View Of Forward Clutch Support & Lo Roller Clutch Assembly
    GM20205Courtesy of GENERAL MOTORS CORP.
  1. Install the forward clutch support and lo roller clutch assembly (114) into the transmission case. Compress the parking pawl spring, and line up the parking pawl with the parking pawl gear.

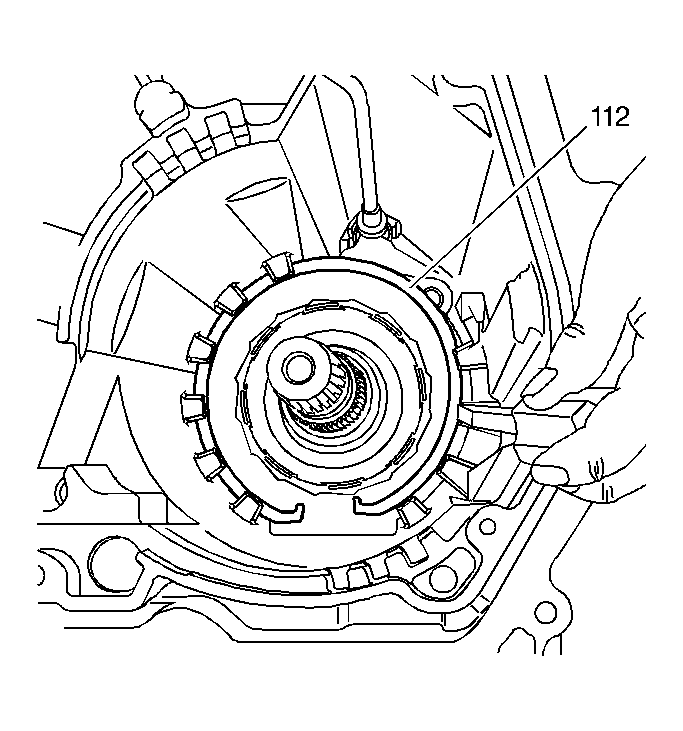

    2. Fig 2: Identifying Forward Clutch Support Snap Ring In Transmission Case
    GM20202Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When installing the forward clutch support snap ring (112), the snap ring opening must be toward the bottom of the transmission case and facing the bottom pan.
  2. Install the forward clutch support snap ring (112) into the transmission case with the chamfer side up. Use a screwdriver in order to set the snap ring into place.
