Driven Sprocket Support Assembly Removal

WARNING: This page is about a different car, the 2004 Pontiac Sunfire, 2004 Chevrolet Classic, and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

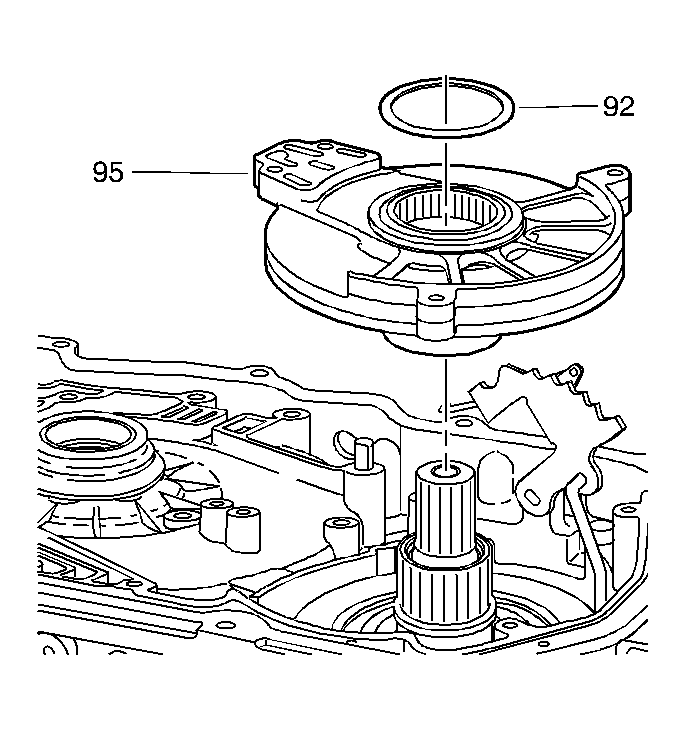

    Fig 1: Locating Driven Sprocket To Driven Sprocket Support Thrust Washer
    GM55108Courtesy of GENERAL MOTORS CORP.
  1. Remove the driven sprocket to driven sprocket support thrust washer (92).
  2. Remove the driven sprocket support assembly (95).
