Drive Sprocket, Driven Sprocket, and Drive Link Removal

WARNING: This page is about a different car, the 2004 Pontiac Sunfire, 2004 Chevrolet Classic, and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

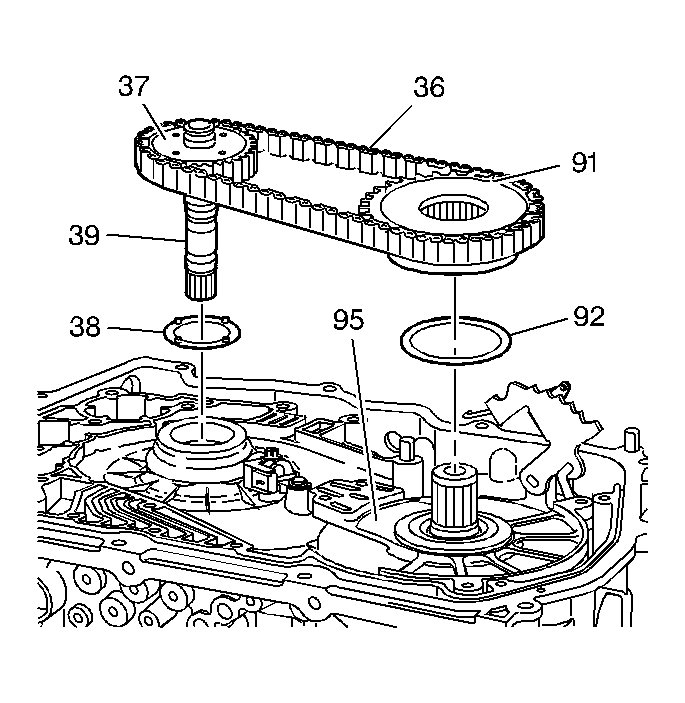

    Fig 1: Identifying Drive Sprocket, Driven Sprocket, and Drive Link
    GM20183Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When removing the drive link assembly (36) note which direction the chain faces. You must later install the chain in the same direction in order to prevent excessive noise.
  1. Remove, as an entire unit, the drive sprocket (37), the turbine shaft (39), the driven sprocket (91) and the drive link assembly (36).
  2. If the drive sprocket to drive sprocket support thrust washer (38) has not remained with the drive sprocket assembly (37 and 39), remove the drive sprocket to drive sprocket support thrust washer (38). The driven sprocket to driven sprocket support thrust washer (92) should remain with the driven sprocket support assembly (95).
