Direct/Coast Clutch and Reaction Gear Set Removal

WARNING: This page is about a different car, the 2004 Pontiac Sunfire, 2004 Chevrolet Classic, and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

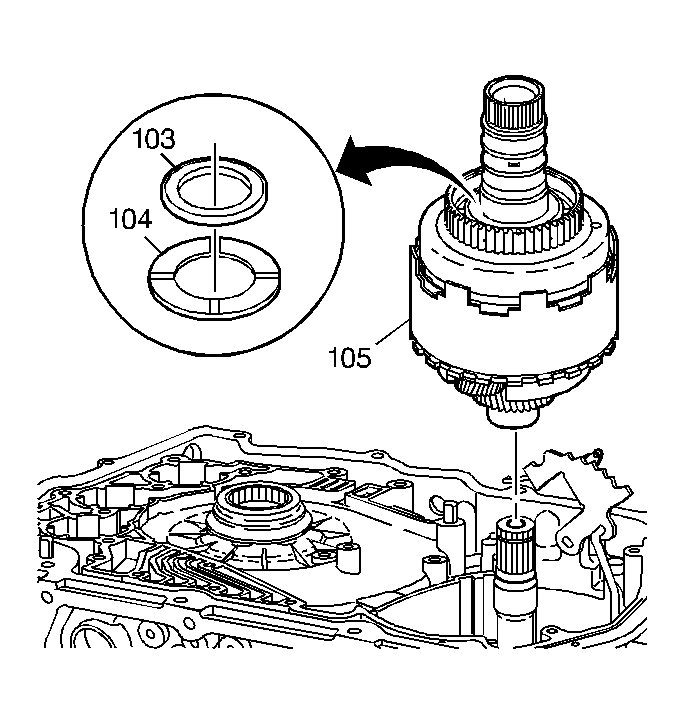

Fig 1: Identifying Direct/Coast Clutch And Reaction Carrier Assembly
GM20195Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Keep the bearing assembly (103) and the selective thrust washer (104) on top of the direct/coast clutch and reaction carrier assembly (105).

Remove the direct/coast clutch and reaction carrier assembly (105).
