Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the tire and wheel assembly.
  3. Remove the hub and bearing assembly. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .
  4. Remove the wheel stud (1) from the hub and bearing assembly (2) using the J 43631  .

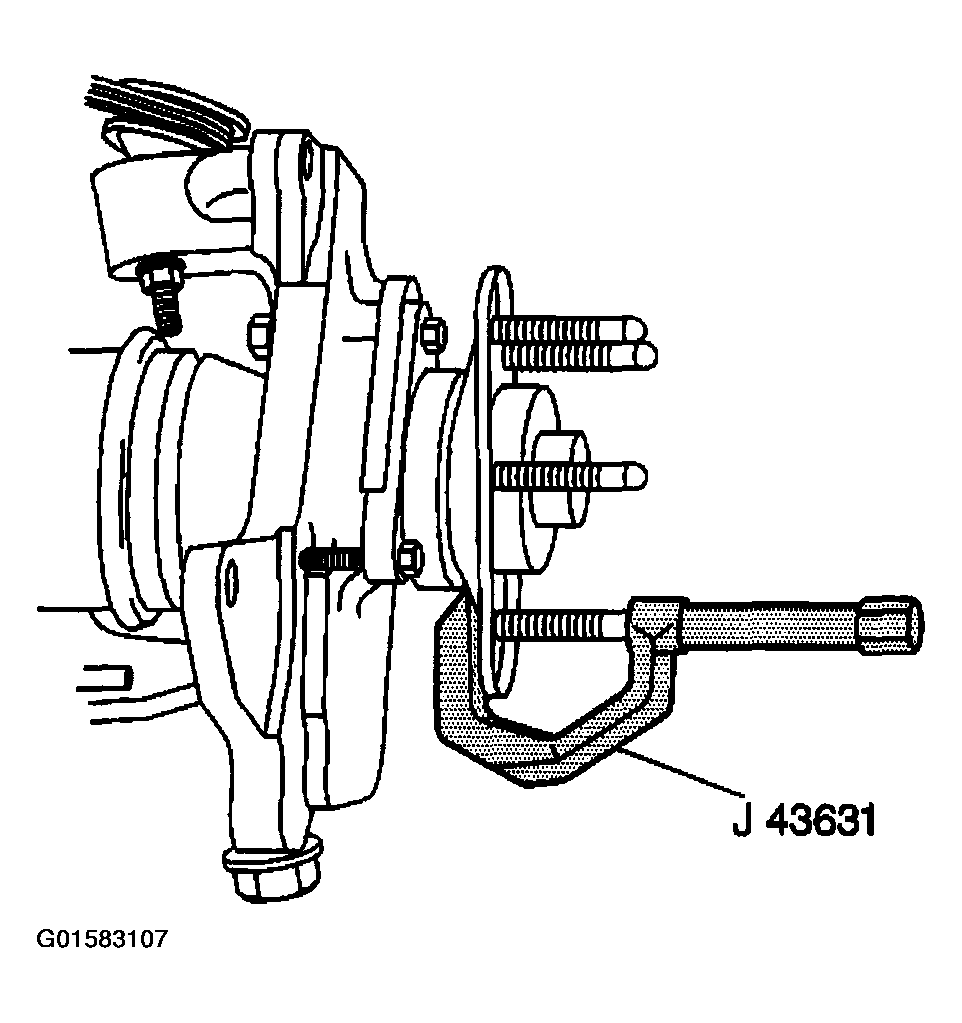

    5. Fig 1: Removing Wheel Stud
    G01583107Courtesy of GENERAL MOTORS CORP.
  5. Discard the stud.
