Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the tire and wheel assemblies.
  3. Remove the tie rod from the steering knuckle.
  4. If the vehicle is equipped with ABS, disconnect the ABS electrical connector.
  5. Remove the hub and bearing assembly. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .
  6. Remove the bolts (3) and nuts (6) that attach the steering knuckle (4) to the strut (2).
  7. Remove the lower ball joint from the steering knuckle. Refer to LOWER BALL JOINT REPLACEMENT .
  8. Remove the steering knuckle (4) from the vehicle.

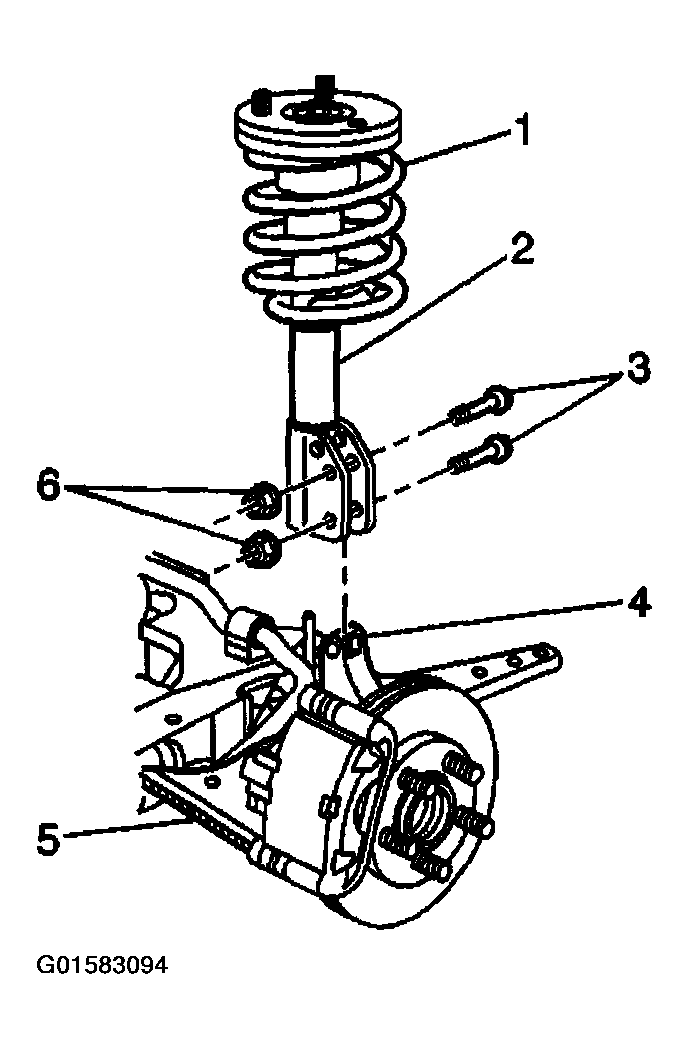

    Fig 1: Steering Knuckle
    G01583094Courtesy of GENERAL MOTORS CORP.
