Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Allow the front suspension to hang free.
  2. Remove the front tire and wheel assemblies.
  3. Remove the lower pinch bolt from the intermediate shaft.
  4. Remove the stabilizer shaft links (6). Refer to STABILIZER SHAFT LINK REPLACEMENT .
  5. Support the front suspension crossmember with a suitable jackstand.
  6. Remove the rear mounting bolts from the front suspension crossmember.
  7. Remove the center mounting bolts from the front suspension crossmember.
  8. Remove the front mounting bolts from the front suspension crossmember.
  9. Lower the front suspension crossmember approximately 15 cm (6 in) by adjusting the jack stands down.
  10. Remove the stabilizer shaft insulator brackets (2) retaining bolts (1).
  11. Remove the stabilizer shaft (3) from the vehicle.

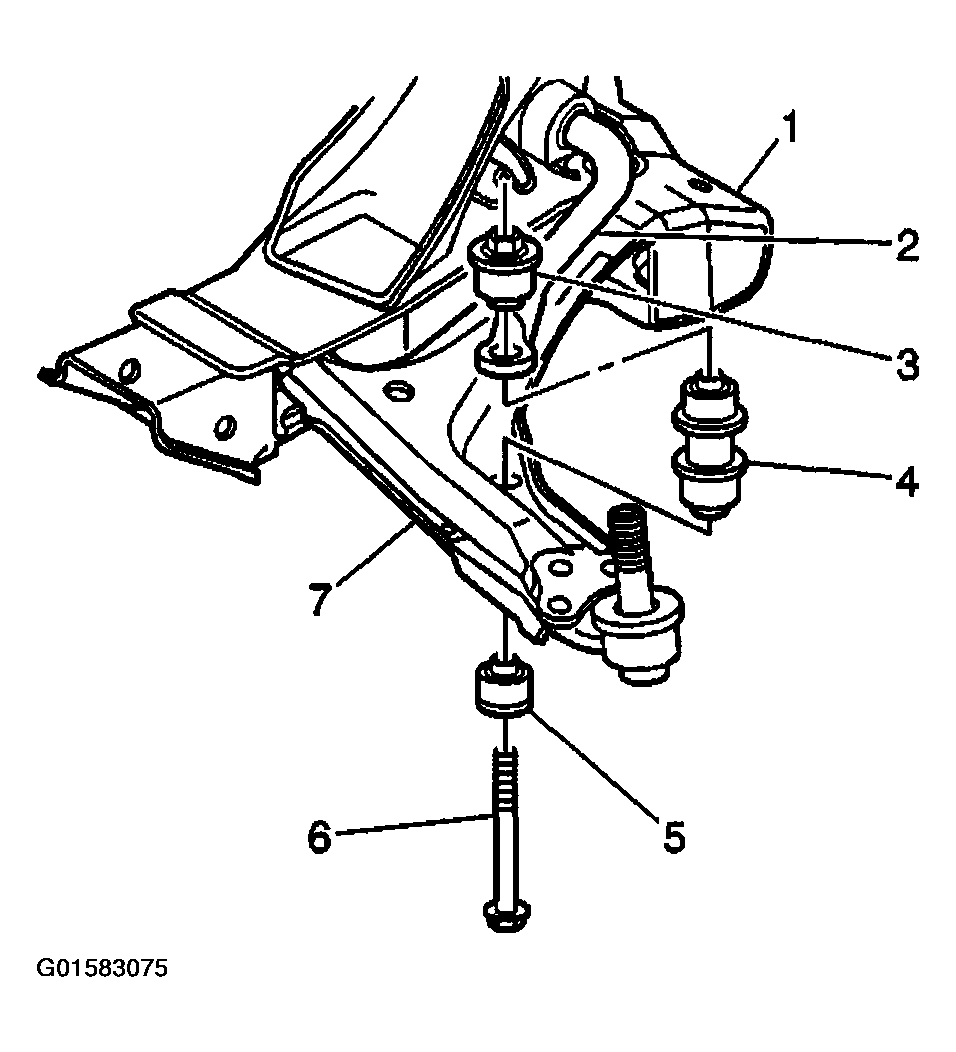

    Fig 1: Stabilizer Shaft Insulator Brackets
    G01583075Courtesy of GENERAL MOTORS CORP.

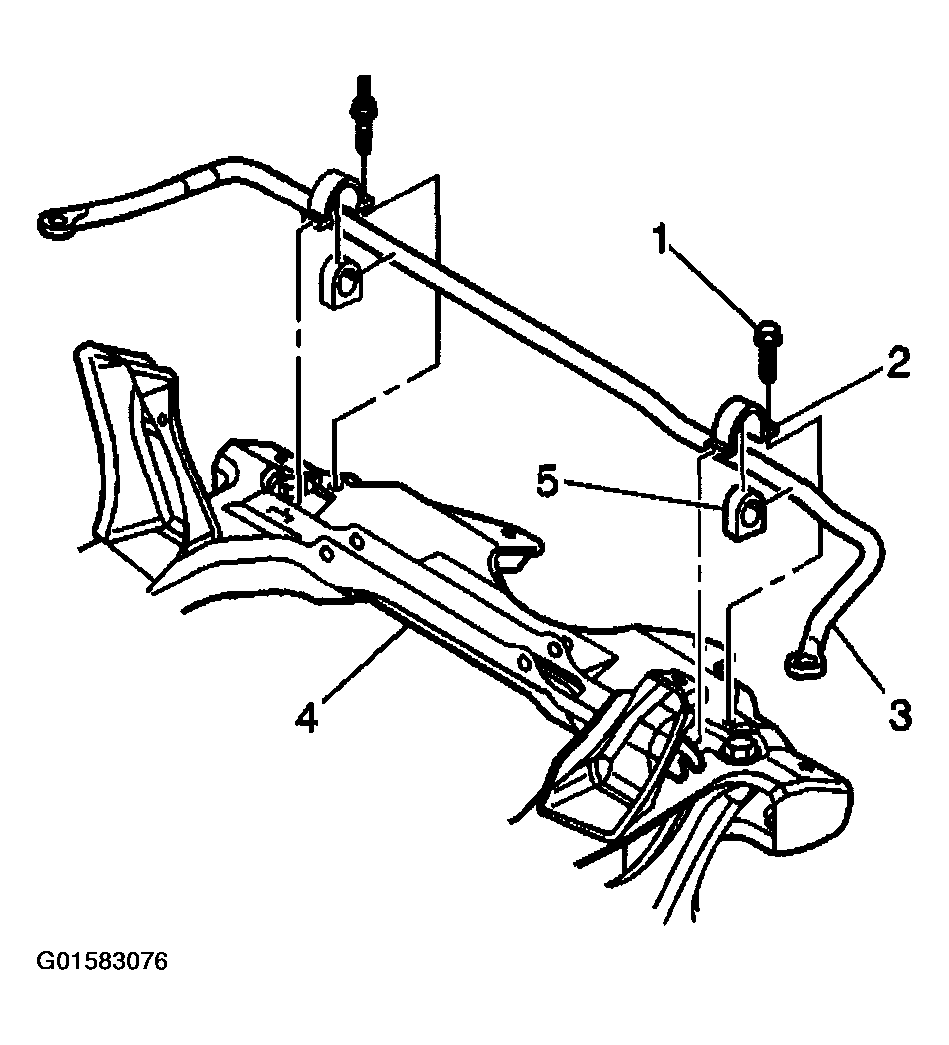

    Fig 2: Stabilizer Shaft
    G01583076Courtesy of GENERAL MOTORS CORP.
