Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the stabilizer link nut (3) from the stabilizer link bolt (6).
  3. Remove the following components:
    • The stabilizer link bolt (6)
    • The insulator (5)
    • The spacer (4)

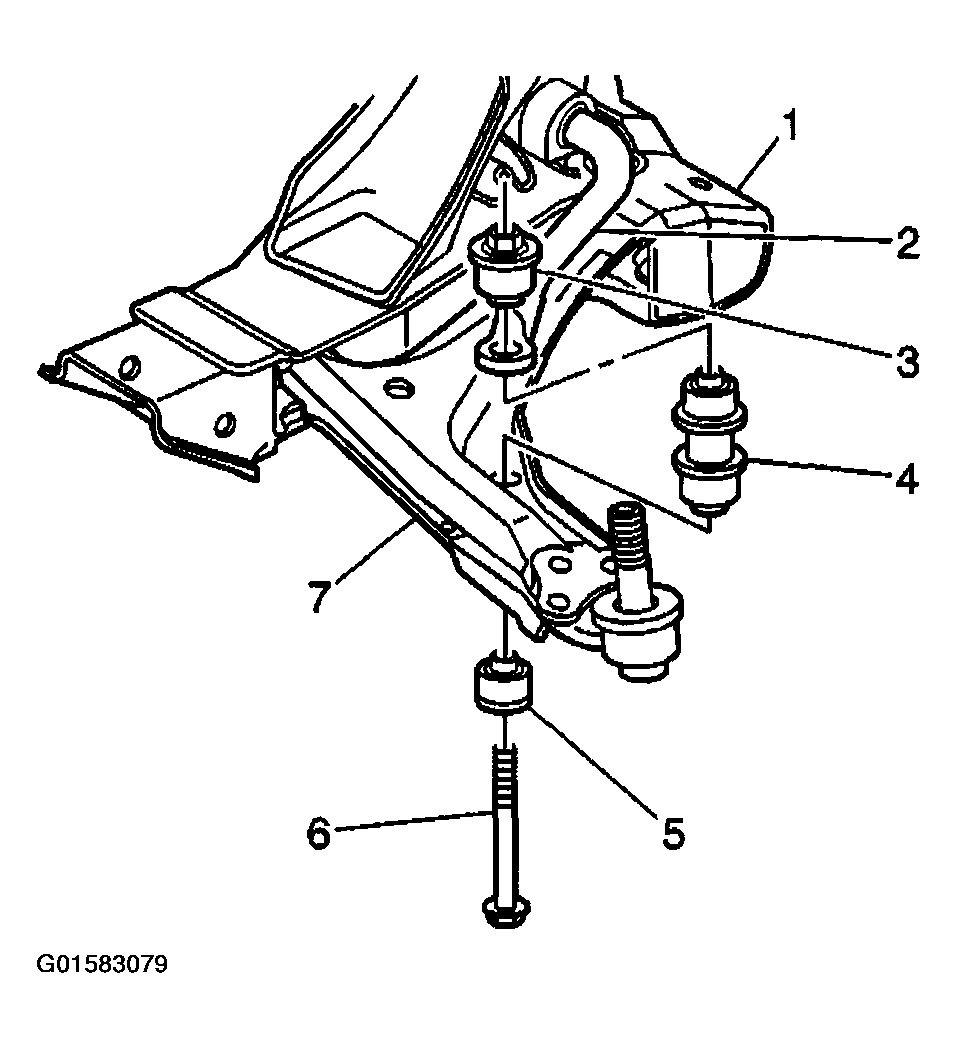

    Fig 1: Stabilizer Link
    G01583079Courtesy of GENERAL MOTORS CORP.
