Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the front tire and wheel assemblies.
  3. Remove the stabilizer shaft from the vehicle. Refer to STABILIZER SHAFT REPLACEMENT .
  4. Remove the stabilizer shaft bushings (5) from the stabilizer shaft (3).

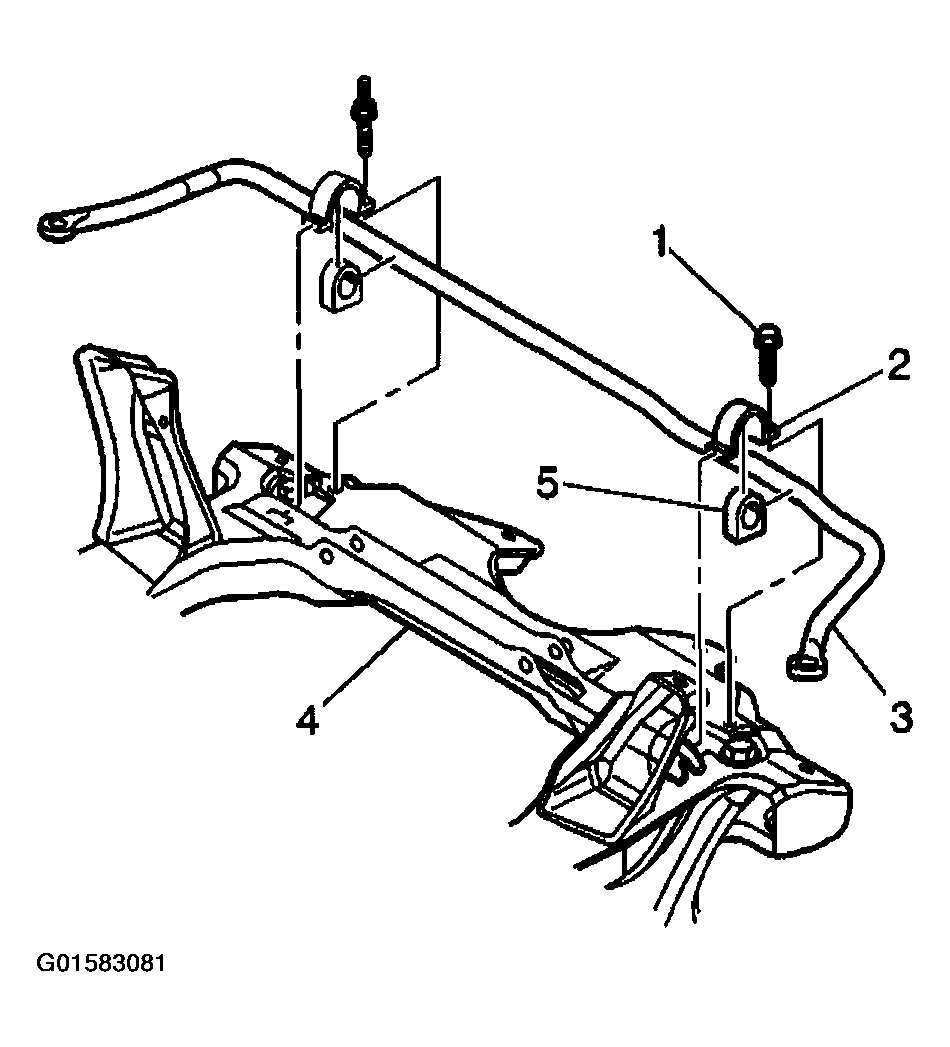

    Fig 1: Stabilizer Shaft
    G01583081Courtesy of GENERAL MOTORS CORP.
