Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the Heavy Side of the flywheel assembly (stamped with an X), with the clutch cover Light Side (marked with paint).
    Fig 1: View Of Clutch Cover And Clutch Disc
    GM100733Courtesy of GENERAL MOTORS CORP.
  2. Install the J 29074-A  in order to support the clutch cover to the flywheel assembly.

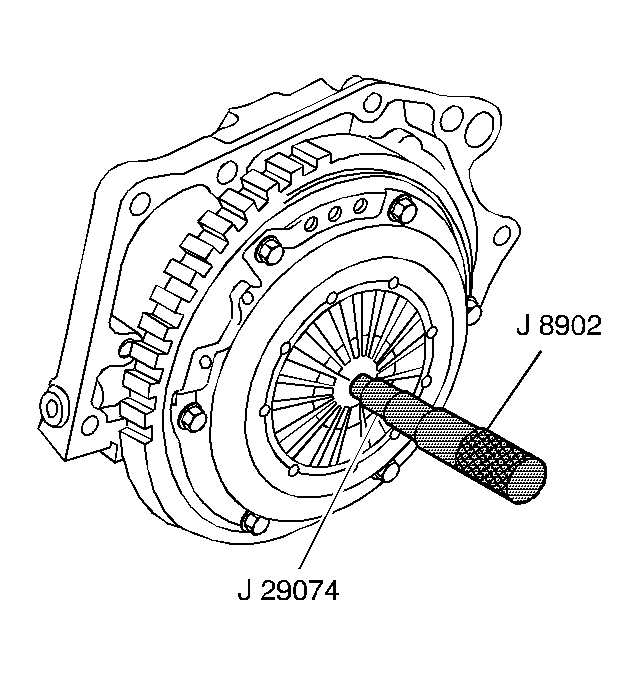

    Fig 2: Identifying J 29074-A
    GM100752Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the clutch cover to flywheel bolts.

    Tighten:

    1. Follow the tightening sequence. Tighten the bolts to 24 N.m (18 lb ft).
    2. Tighten the bolts to specifications. Refer to Fastener Tightening Specifications .
      Fig 3: Locating Clutch Cover To Flywheel Bolts
      GM100744Courtesy of GENERAL MOTORS CORP.

  4. Remove the J 29074-A  .
  5. Lubricate the inside diameter of the bearing with GM P/N 12345777, or equivalent.
  6. Install the transmission. Refer to Transmission Replacement in Manual Transmission - M86/M94 Getrag.
  7. Bleed the hydraulic system. Refer to Hydraulic Clutch Bleeding .
  8. Connect the negative battery cable.
