Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the universal spring (1) to the brake backing plate.
    Fig 1: View Of Brake Drum Universal Spring
    GM891442Courtesy of GENERAL MOTORS CORP.
  2. Position the hook end of the J 38400  (1) under the universal spring and lightly pull the universal spring end out, away from the hub, while installing the spring end into the shoe web hole.

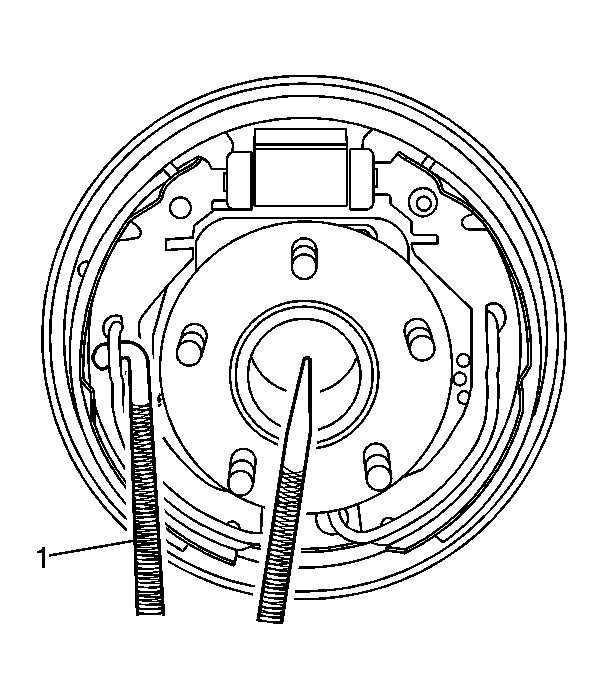

    Fig 2: Identifying Brake Shoe Spanner & Spring Remover
    GM1195871Courtesy of GENERAL MOTORS CORP.
  3. Position the hook end of the J 38400  (1) under the universal spring and lightly pull the universal spring end out, away from the hub, while installing the spring end into the shoe web hole.
    Fig 3: View Of Brake Shoe Spanner & Spring Remover
    GM783356Courtesy of GENERAL MOTORS CORP.
  4. Install the brake drum. Refer to Brake Drum Replacement .
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Lower the vehicle.
