WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

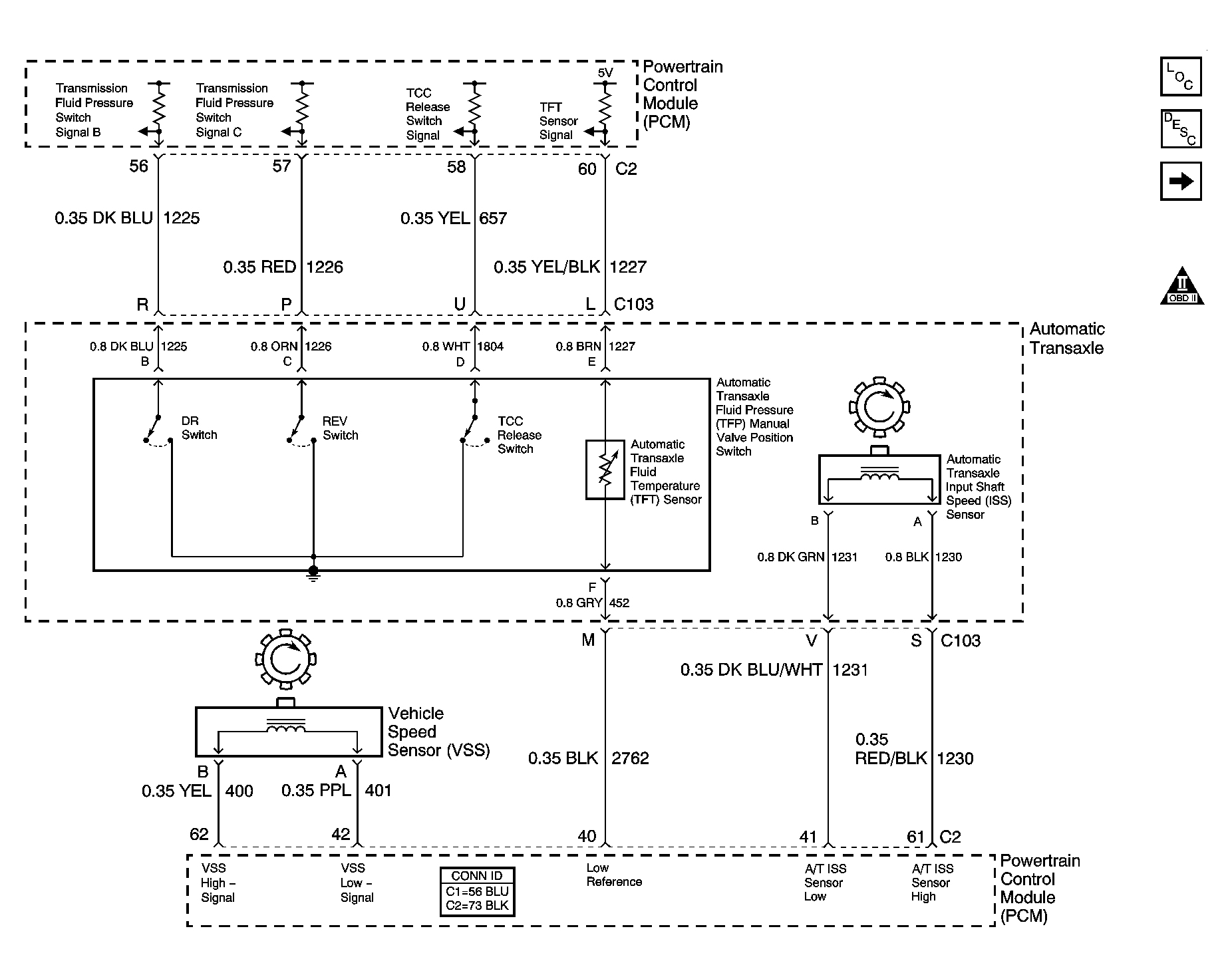

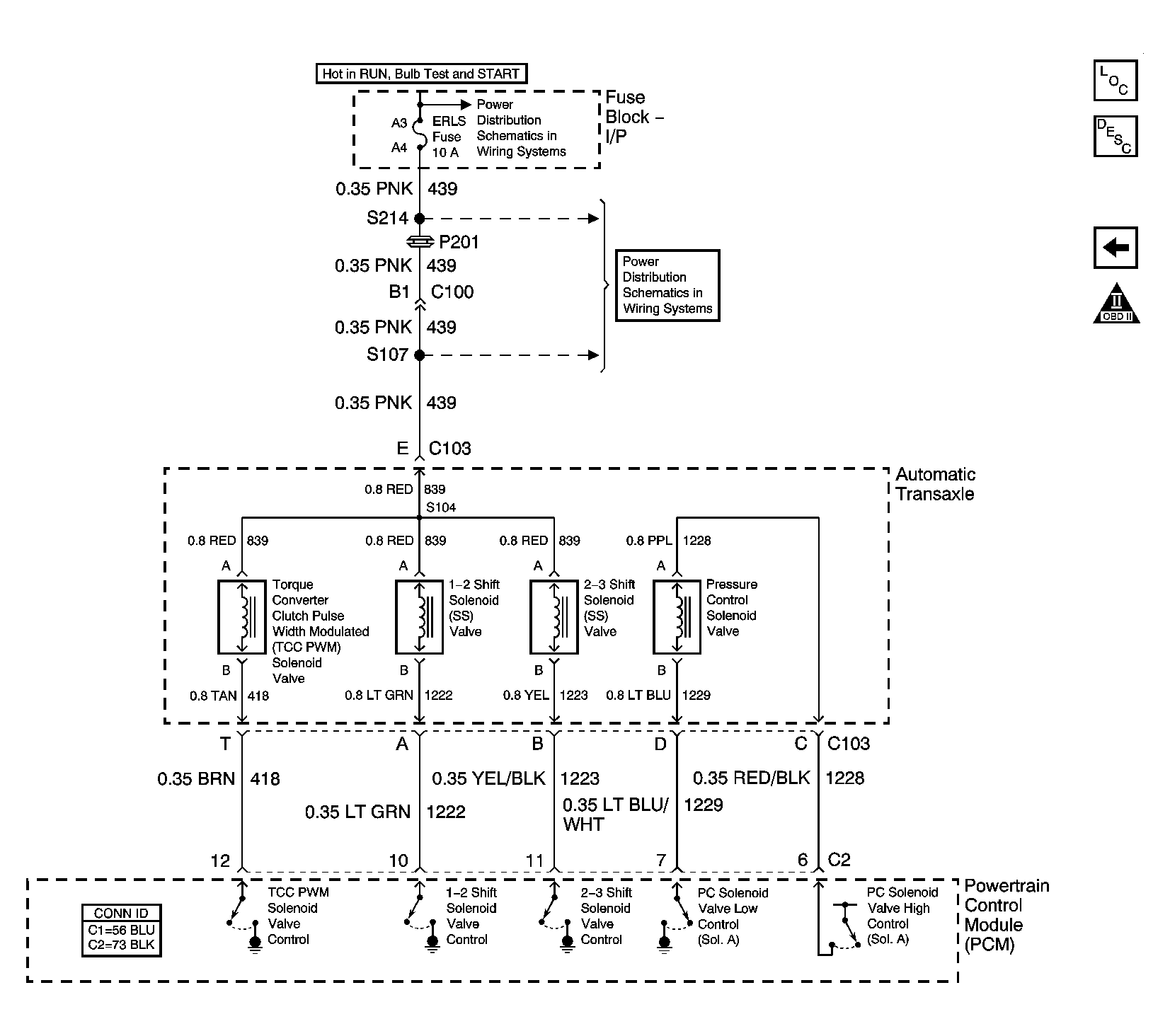

Fig 1: Automatic Transmission Controls Schematics
Courtesy of GENERAL MOTORS CORP.

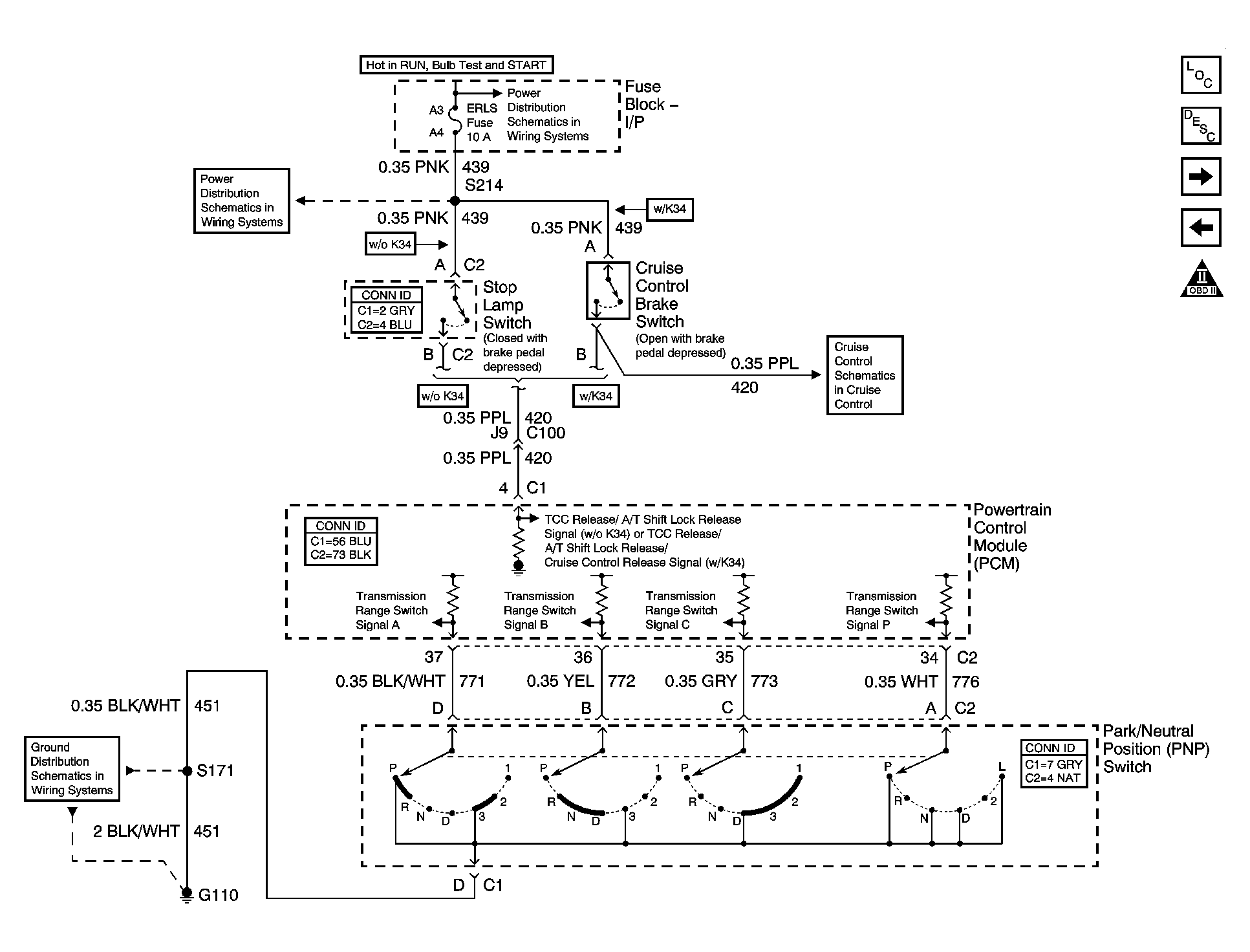

Fig 2: PNP Switch and TCC Release Signal Schematics
