Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the shifter on the studs and install the front 2 nuts.

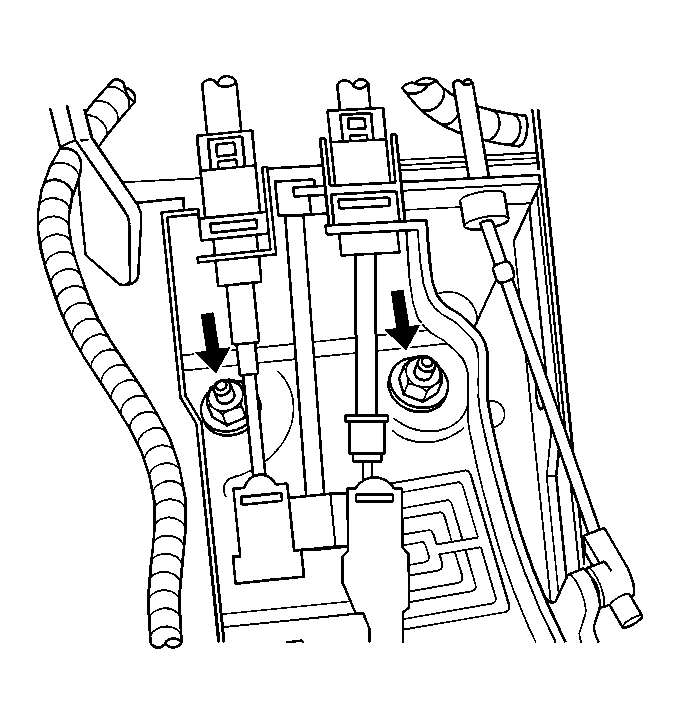

    Fig 1: Locating Shift Control Front Mounting Nuts
    GM623623Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 2 rear bolts.
    Fig 2: Identifying Shift Control Rear Mounting Bolts
    GM623626Courtesy of GENERAL MOTORS CORP.

    Tighten:  Tighten the nuts and bolts to 25 N.m (18 lb ft).

  3. Install the shift cables. Refer to Shift Control Cable Replacement .
  4. Install the console. Refer toConsole Replacement - Front Floor in Instrument Panel, Gages, and Console.
