Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the front wheel and tire assemblies. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  3. Remove the wheel driveshaft. Refer to Wheel Drive Shaft Replacement in Wheel Drive Shafts.
  4. Use the J 23129  and the J 6125-B  in order to remove the seal.

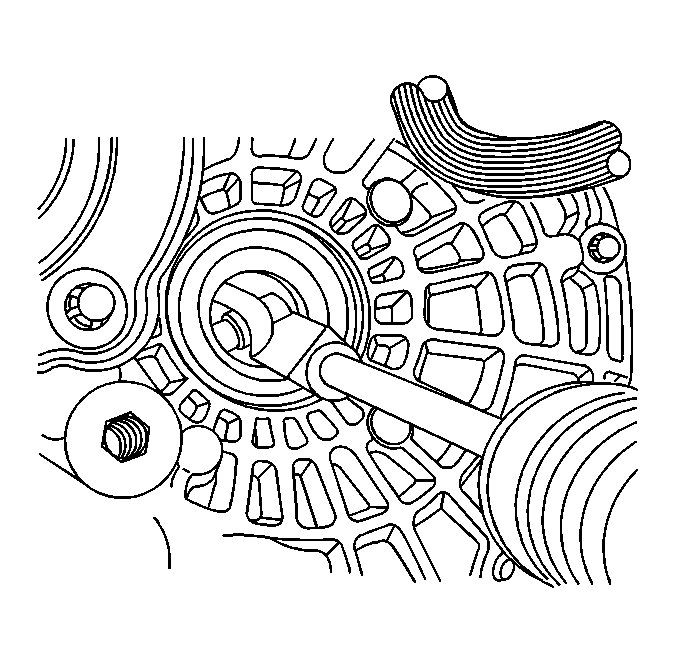

    5. Fig 1: Removing Axle Shaft Oil Seal
    GM646525Courtesy of GENERAL MOTORS CORP.
  5. Inspect the seal bore for nicks or for burrs. Clean the bore with a fine grade sandpaper, if necessary.
