Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor.
    Fig 1: View Of Blower Motor
    GM869027Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the blower motor screws.

    Tighten:  Tighten the screws to 5 N.m (44 lb in).

  3. Connect the blower motor electrical connector.

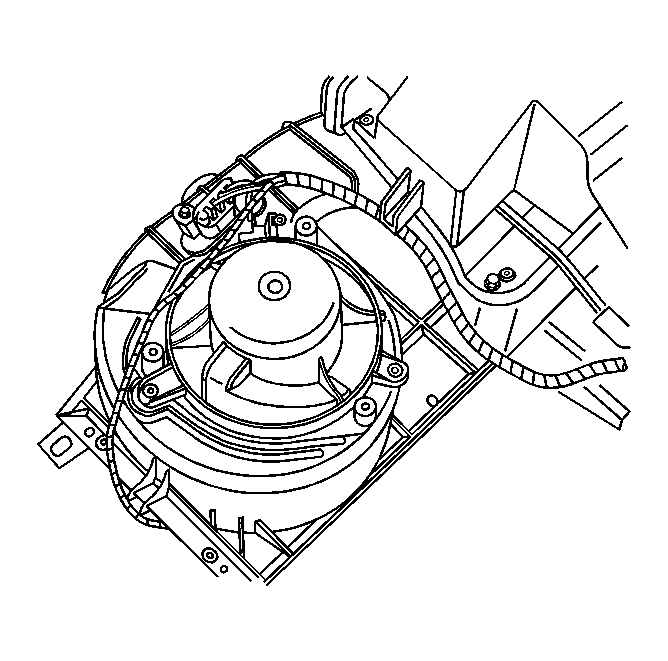

    Fig 2: Identifying Blower Motor Electrical Connectors
    GM869032Courtesy of GENERAL MOTORS CORP.
