Cylinder Head Thread Specification - Bottom View
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

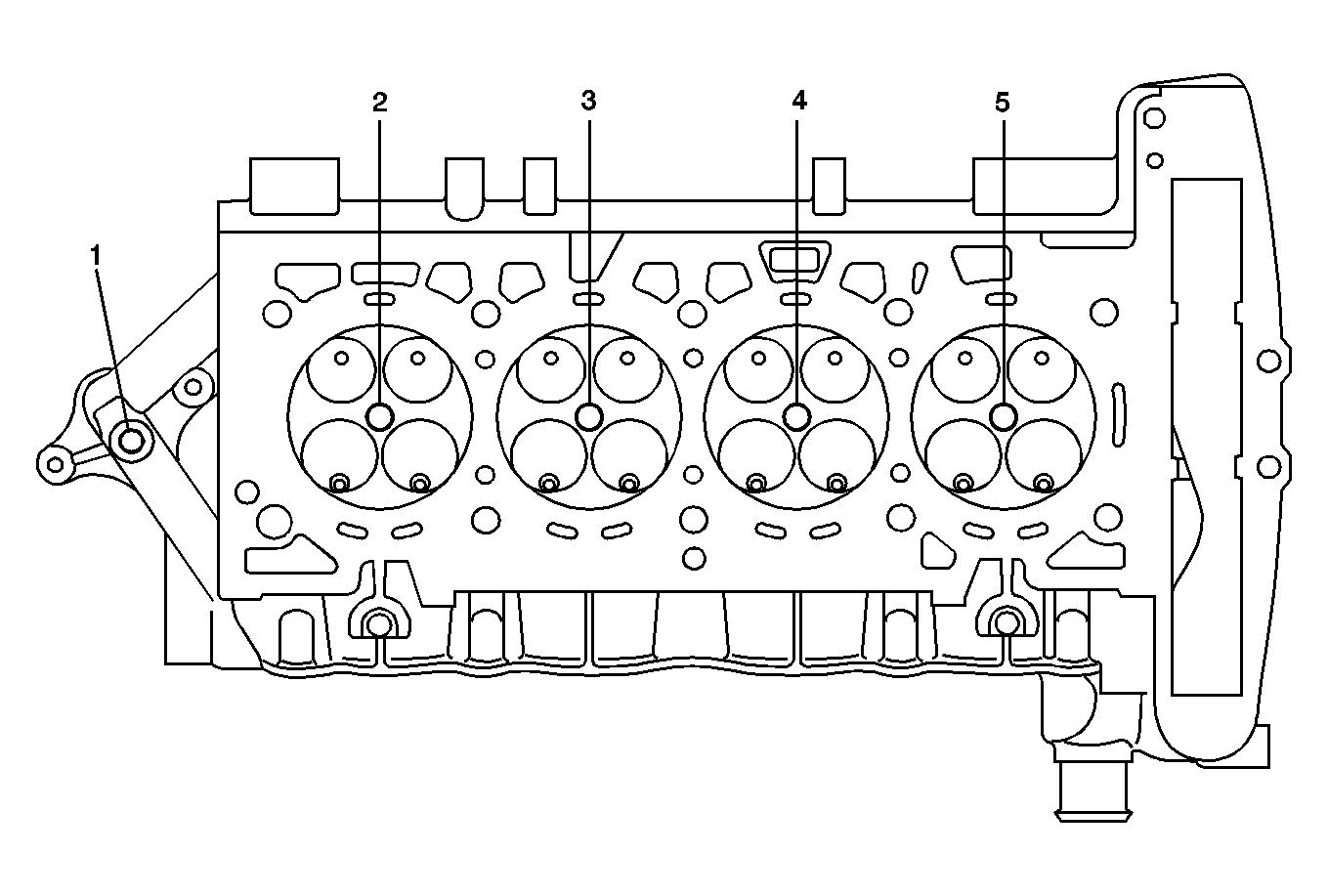

Cylinder Head - Bottom View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| J 42385- | MM | (IN) | MM | (IN) | ||||||
| 1 | M12 x 1.75 | 865 | 856 | 857 | 858 | 859 | 17 | 0.670 | 14 | 0.551 |
| 2 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 3 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 4 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 5 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
