Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement in Engine Controls 2.2L (L61).
  2. Unclip the electrical wiring harness from the oil level indicator tube.
  3. Remove the oil level indicator tube bolt (1).

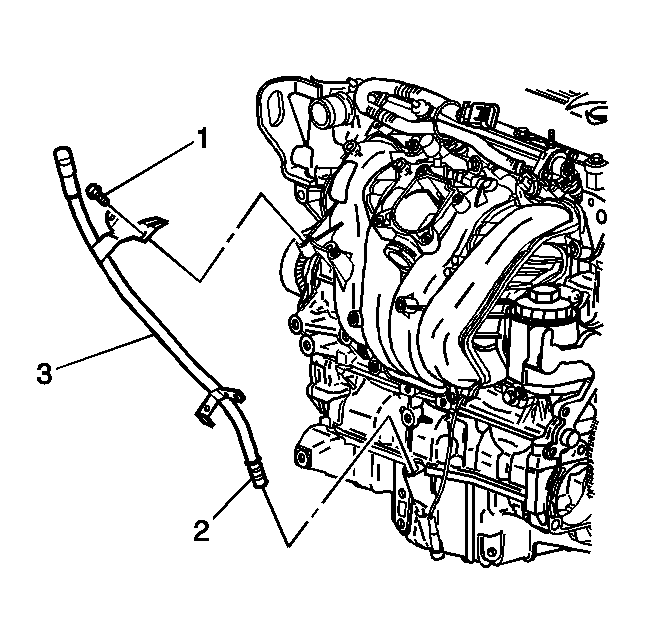

    Fig 1: View Of Oil Level Indicator Tube
    GM797052Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil level indicator tube (3).
  5. Remove the oil level indicator tube seal (2).
