Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 42451  to the right rear of the cylinder head.
    Fig 1: View Of Engine Lift Bracket
    GM105924Courtesy of GENERAL MOTORS CORP.
  2. Install the J 28467-B  and J-28467-501  to the vehicle.
  3. Install the J 28467-7  (2) to the engine front lift bracket.
  4. Install the J 28467-8  (5) to the J 42451  at the rear of the cylinder head.

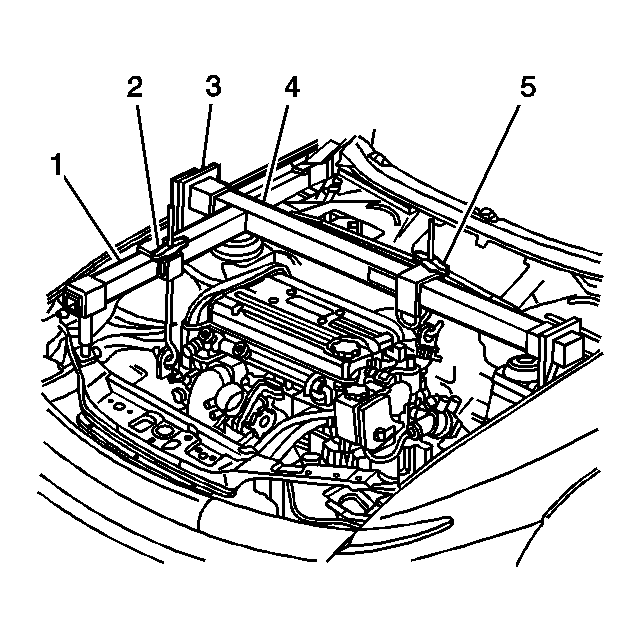

    Fig 2: View Of Universal Engine Support Fixture
    GM789910Courtesy of GENERAL MOTORS CORP.
