Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the drive belt tensioner counterclockwise to release the spring tension.

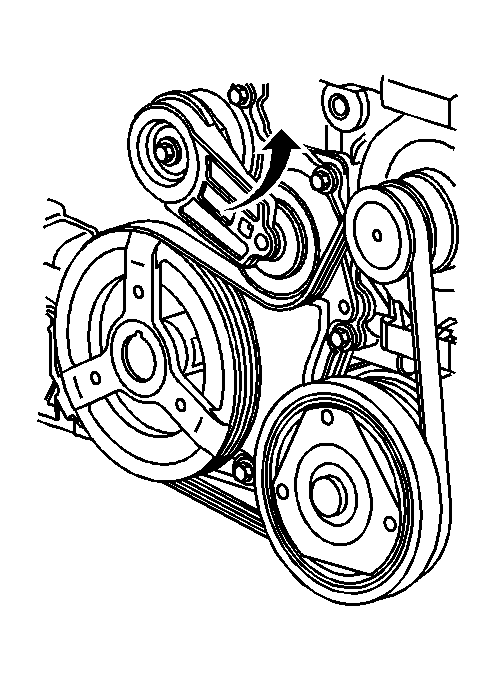

    Fig 1: Identifying Drive Belt Routing
    GM758256Courtesy of GENERAL MOTORS CORP.
  2. Install the drive belt.
  3. Install the front fender liner. Refer to Front Fender Liner Replacement .
  4. Lower the vehicle.
