Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the oil level indicator tube O-ring with GM P/N 12345501 (Canadian P/N 992704) or equivalent.
  2. Install the oil level indicator and the oil level indicator tube into the oil pan.

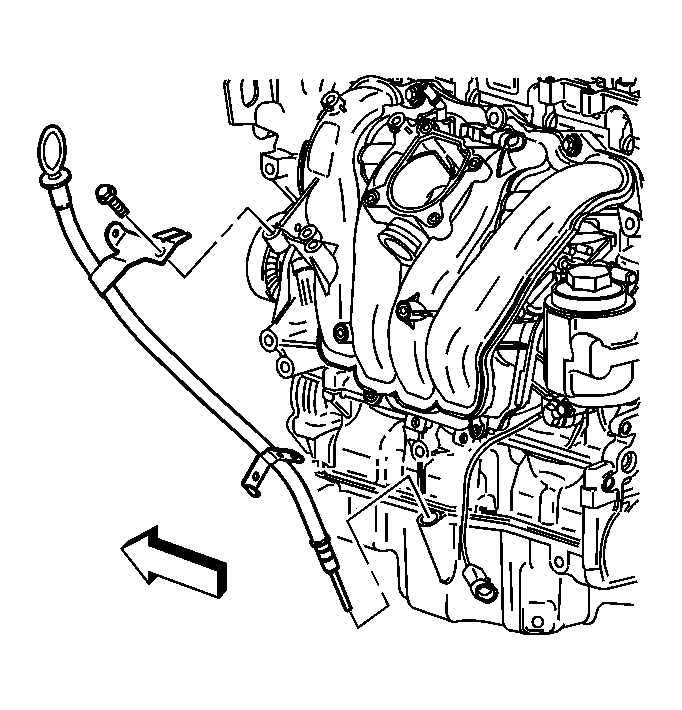

    Fig 1: Identifying Oil Level Indicator and Tube
    GM801004Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the oil level indicator tube bracket to the intake manifold bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  4. Install the electrical wiring harness to the oil level indicator tube.
  5. Install the knock sensor wiring clip into the oil level indicator tube.
