Transmission ID and VIN Derivative Location

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

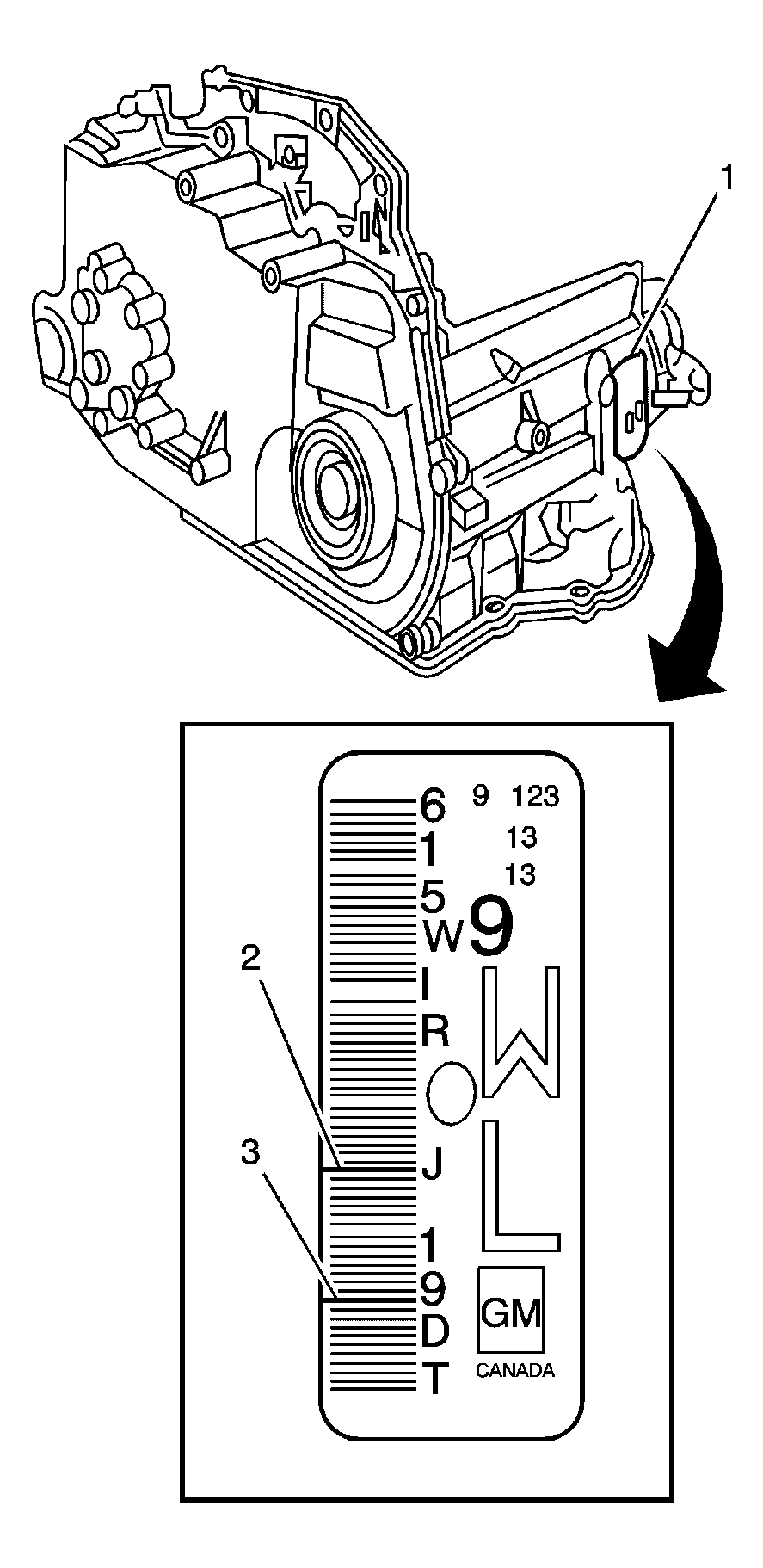

Fig 1: 4T40-E/4T45-E Transmission ID and VIN Derivative Location, MN4/MN5

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Goodwrench Tag Location
2	Remanufacturing Site Code
3	Serial Number

All automatic transmissions have a metal identification (ID) nameplate (1) attached to the case exterior.

Fig 2: VIN Derivative Location 4T40-E/4T45-E

Courtesy of GENERAL MOTORS CORP.

The Location of the Vehicle Identification Number (VIN) Derivative (1).

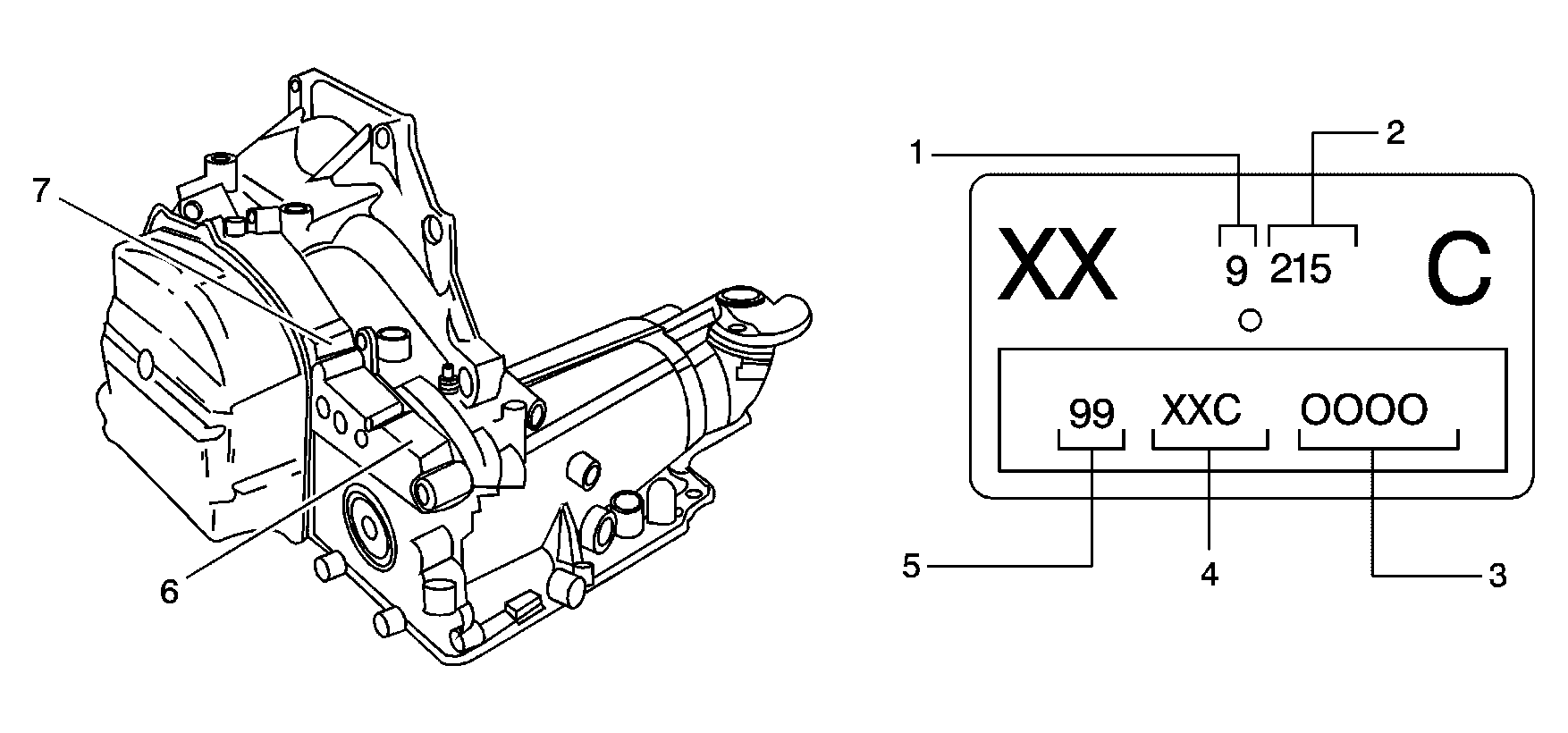

Fig 3: Transmission ID and VIN Derivative Location (3T40)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Calendar Year
2	Julian Date
3	Serial Number
4	Model
5	Model Year
6	Transmission ID Location
7	VIN Location

The various possible locations for the Getrag Vehicle Identification Number (VIN) Derivative (1).

Fig 4: Getrag 5T45-E Transmission VIN Location, M86

Courtesy of GENERAL MOTORS CORP.
