Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood latch support (1) in the vehicle.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the lower bolts (4) to the hood latch support.

    Tighten:  Tighten the hood latch support lower bolts to 27 N.m (20 lb ft).

  3. Install the upper bolts (2) to the hood latch support.

    Tighten:  Tighten the hood latch support upper bolts to 9 N.m (80 lb in).

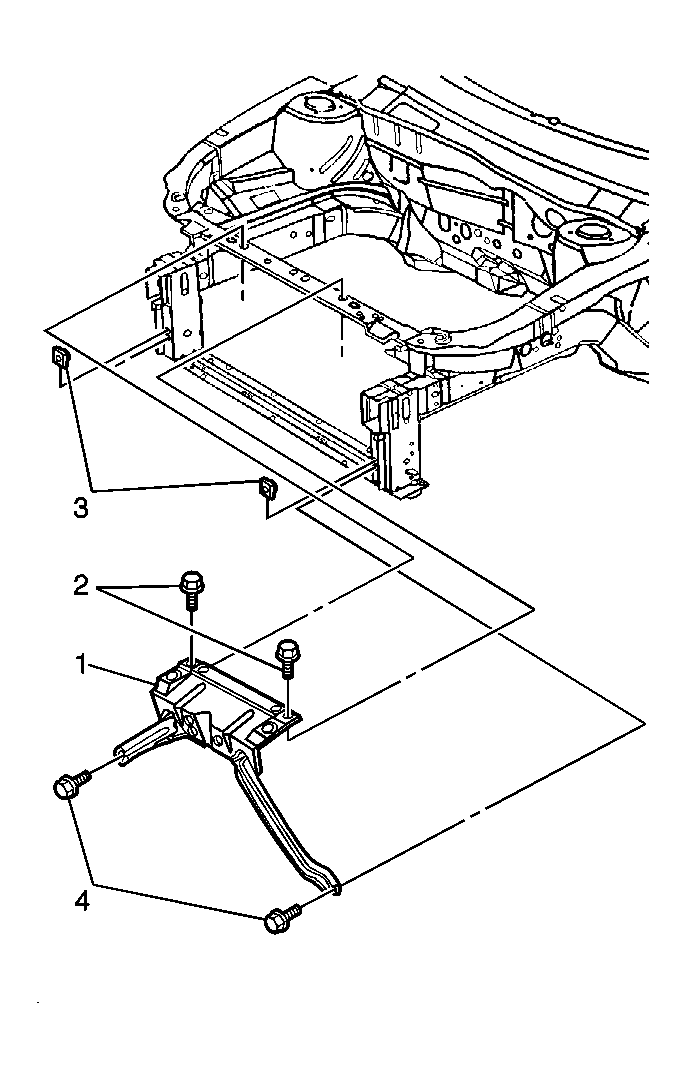

    Fig 1: Installing Upper & Lower Hood Latch Support Bolts
    GM282261Courtesy of GENERAL MOTORS CORP.
  4. Install the hood latch. Refer to Hood Latch Replacement .
  5. Engage the air bag sensor. Refer to SIR Disabling and Enabling Zone 1 .
  6. Install the hood latch cover. Refer to Hood Latch Cover Replacement .
  7. Install the hood close out filler panel. Refer to Hood Close Out Filler Replacement .
