Hood Adjustment

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the bolts for the hood latch.
    Fig 1: Opening Hood Latch
    GM330152Courtesy of GENERAL MOTORS CORP.
  2. Adjust the front hood bumpers on the radiator support until the hood aligns with the front of the fenders.

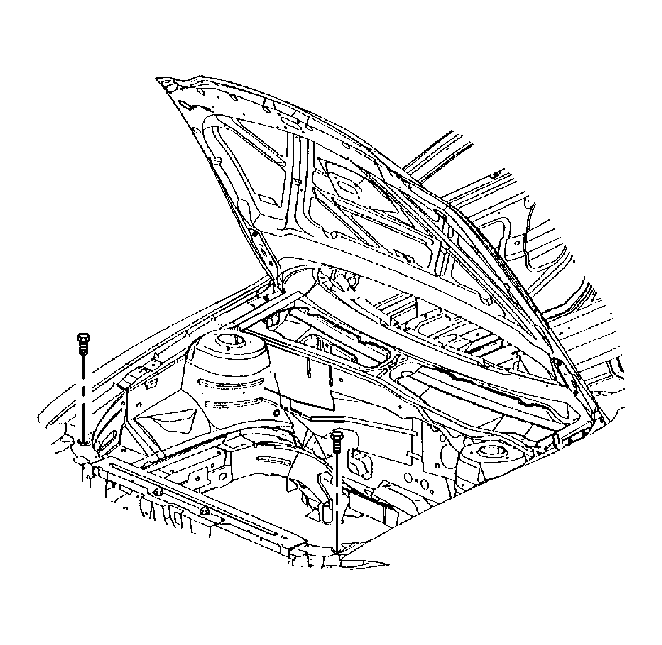

    Fig 2: Adjusting Front Hood Bumpers
    GM330095Courtesy of GENERAL MOTORS CORP.
  3. Measure the difference between the hood and the rear of the fender.
  4. Obtain a shim that is the same thickness as the difference between the hood and the rear of the fender.
  5. Loosen the hood hinge to hood bolts.

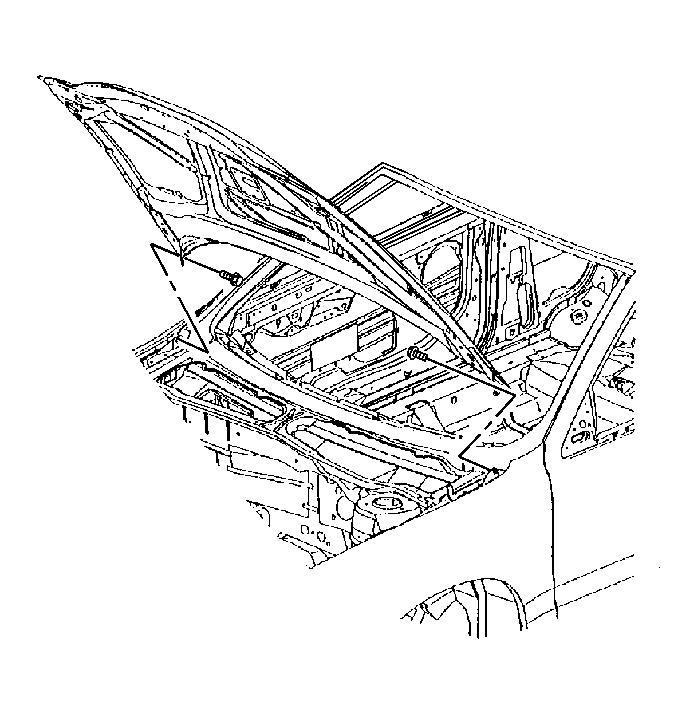

    Fig 3: Adjusting Hood Hinge To Hood Bolts
    GM330098Courtesy of GENERAL MOTORS CORP.
  6. Install the shim between the hood hinge and the hood.
  7. Tighten the hood latch bolts by hand until they are snug.
  8. Position the hood latch upward.
  9. Tighten the hood latch bolts until they are snug.
  10. Carefully close the hood in order to engage the hood latch.
    Fig 4: Closing Hood Latch
    GM330152Courtesy of GENERAL MOTORS CORP.
  11. Adjust the clearance between the hood and fender.
  12. Carefully open the hood.
    13. NOTE: Refer to FASTENER NOTICE .
  13. Fully tighten the hood latch bolts.

    Tighten:  Tighten the hood latch bolts to 10 N.m (89 lb in).

  14. Fully tighten the hood hinge to hood bolts.

    Tighten:  Tighten the hood hinge to hood bolts to 25 N.m (18 lb ft).
