Body Front End Description: Notes

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

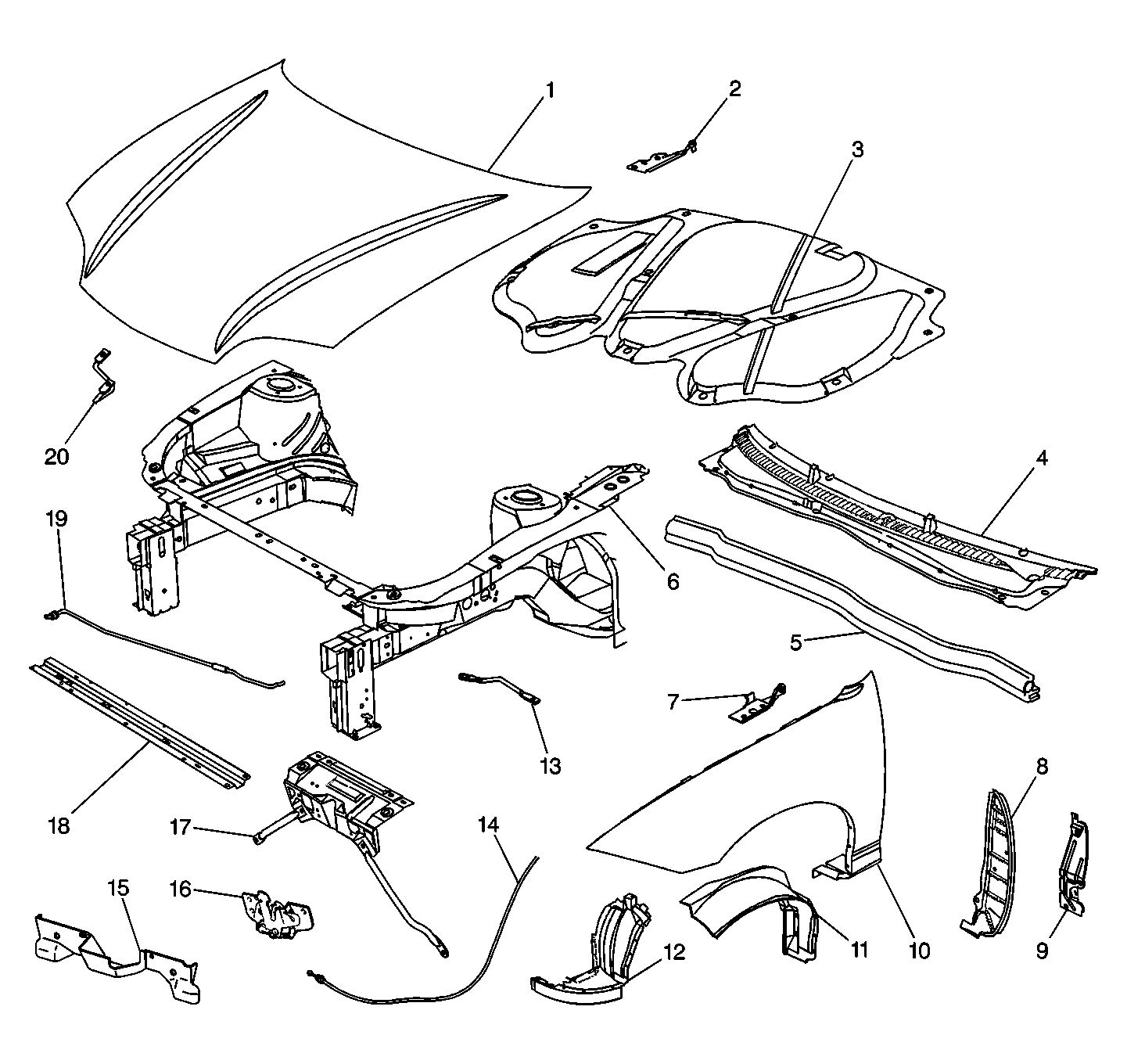

Fig 1: Body Front End Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood
2	Hood Hinge Upper
3	Hood Insulator
4	Air Inlet Screen
5	Hood Rear Seal
6	Engine Compartment
7	Hood Hinge Lower
8	Fender Insulator
9	Fender Center Bracket
10	Fender
11	Wheel Housing
12	Splash Shield
13	Fender Lower Bracket
14	Hood Latch Cable
15	Hood Latch Cover
16	Hood Latch
17	Hood Latch Support
18	Lower Tie Bar
19	Hood Hold Open Rod
20	Hood Latch Striker

All potential water leak locations are sealed in production using high quality durable sealers.

If you reseal specific areas of the body front end, use a high quality sealer with the following properties:

Of medium thickness
Remains flexible after curing
Paintable
