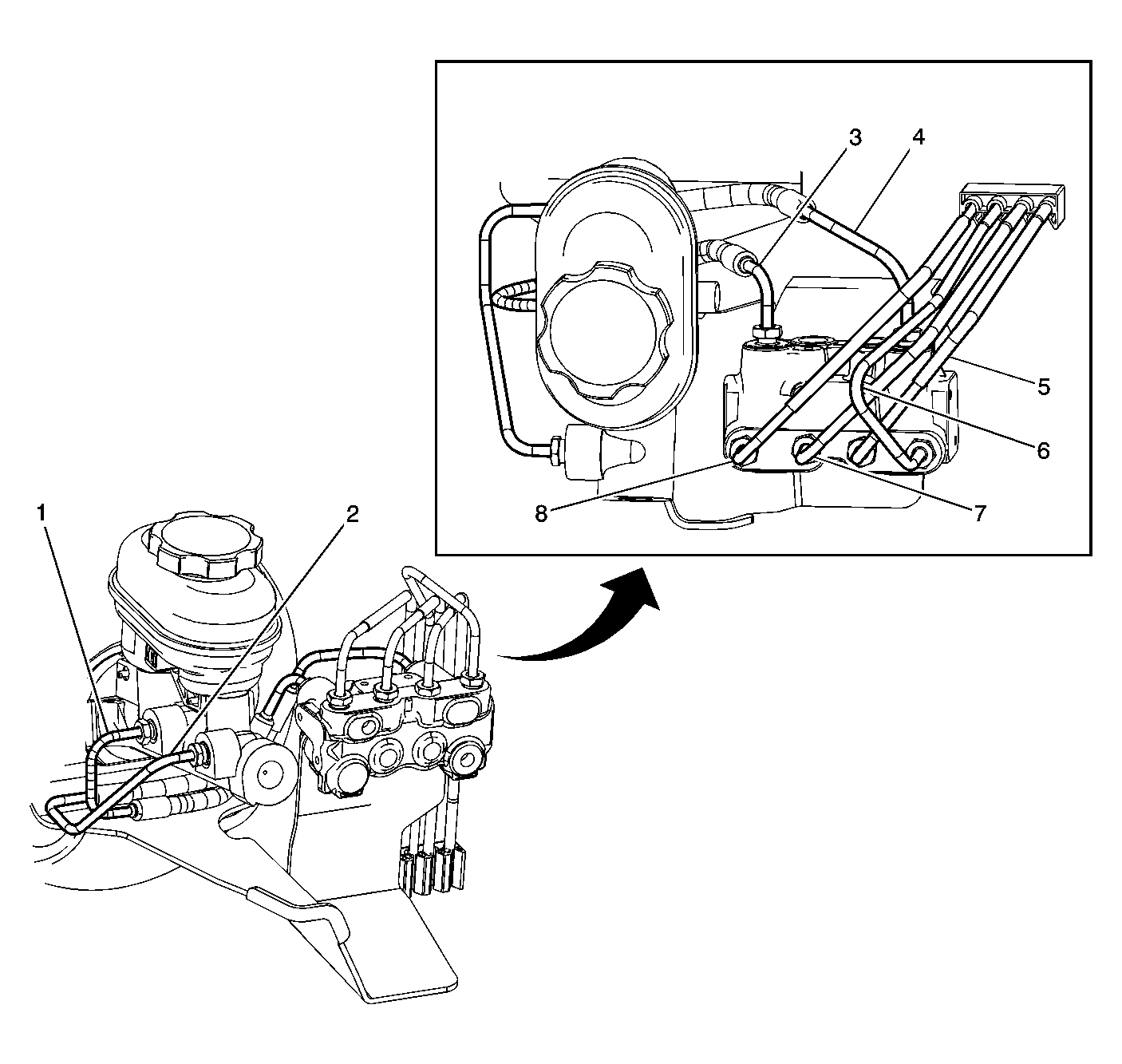

Hydraulic Brake Pipe Routing - Master Cylinder to Proportioning Valve Assembly
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Master Cylinder Primary Brake Pipe |
| 2 | Master Cylinder Secondary Brake Pipe |
| 3 | Master Cylinder Primary Brake Pipe at Proportioning Valve |
| 4 | Master Cylinder Secondary Brake Pipe at Proportioning Valve |
| 5 | Proportioning Valve Brake Pipe to LF Brake Corner |
| 6 | Proportioning Valve Brake Pipe to RR Brake Corner |
| 7 | Proportioning Valve Brake Pipe to RF Brake Corner |
| 8 | Proportioning Valve Brake Pipe to LR Brake Corner |
