Engine Cooling Schematics

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

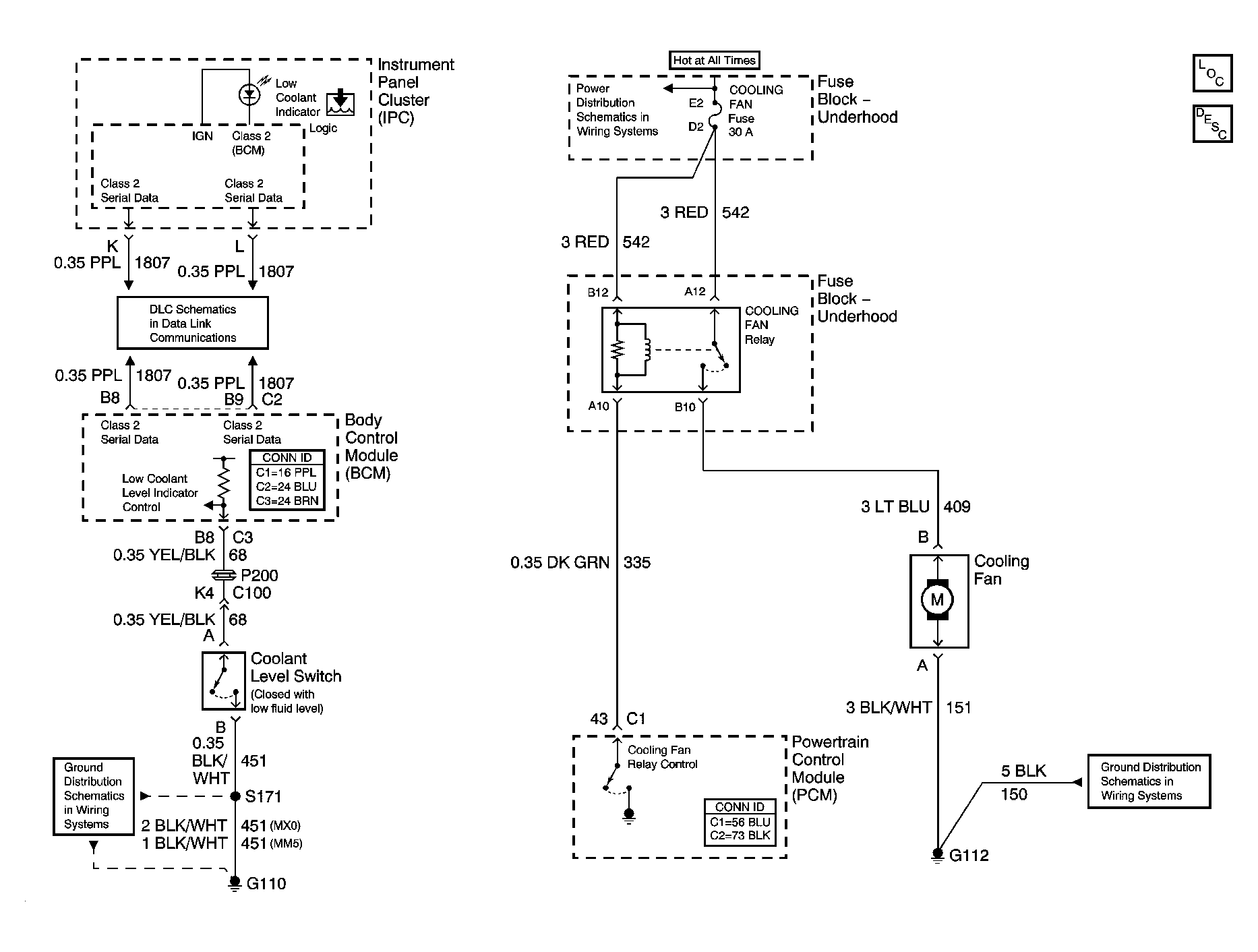

Fig 1: Engine Cooling Fan & Coolant Level Switch Schematic
GM860396Courtesy of GENERAL MOTORS CORP.
