HVAC Schematics

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

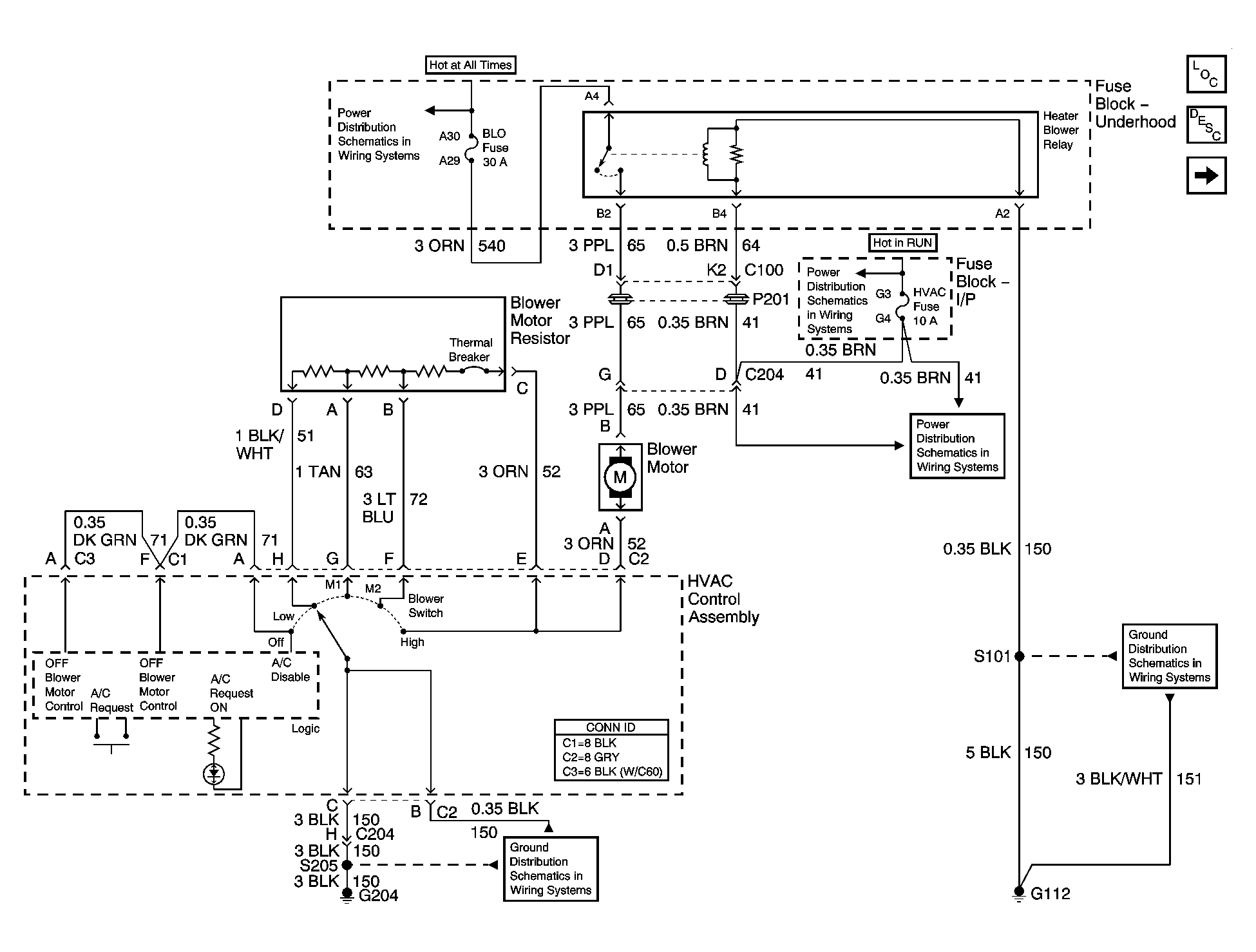

Fig 1: Blower Controls Schematics

Courtesy of GENERAL MOTORS CORP.

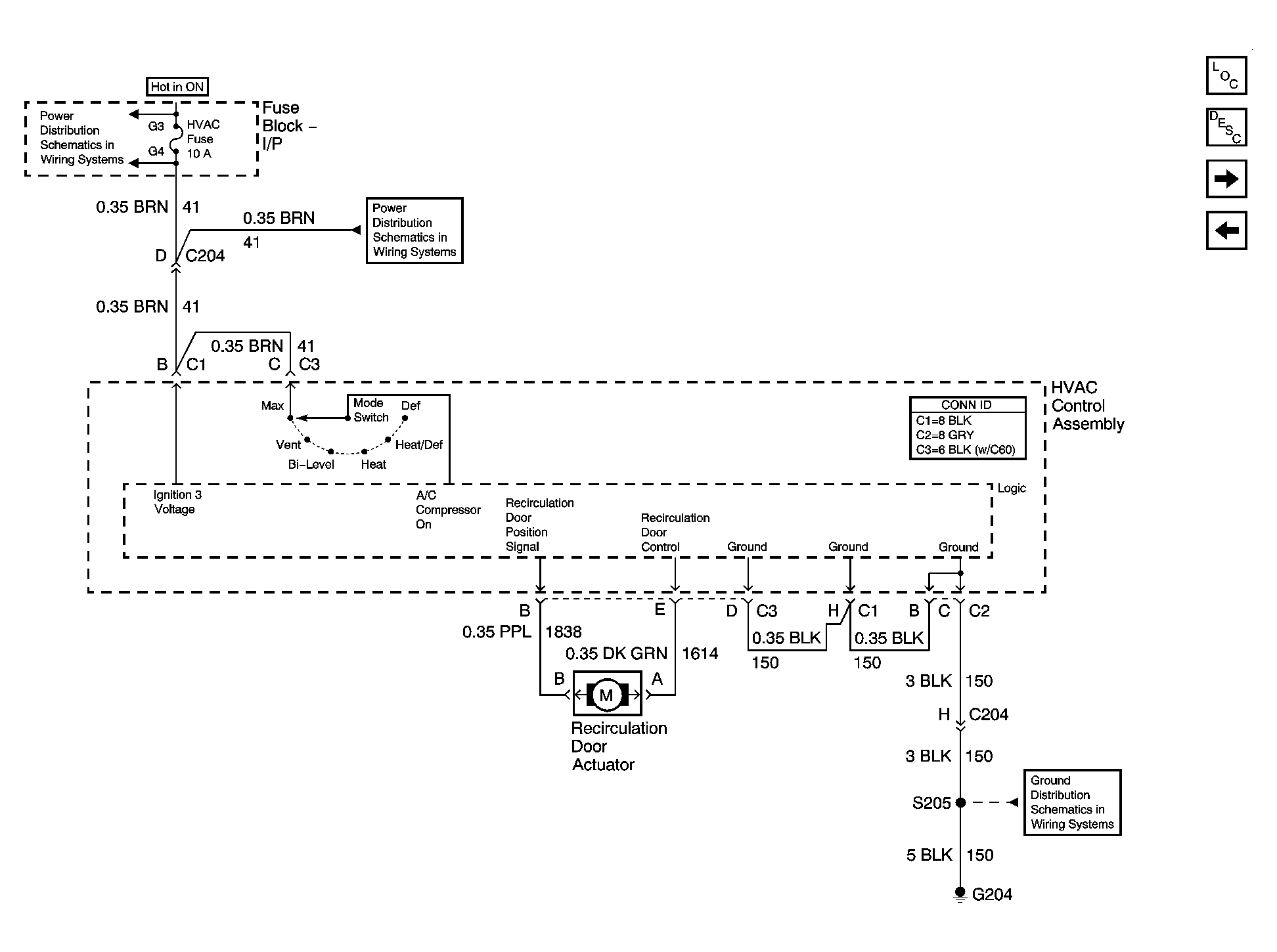

Fig 2: Air Delivery Controls Schematics

Courtesy of GENERAL MOTORS CORP.

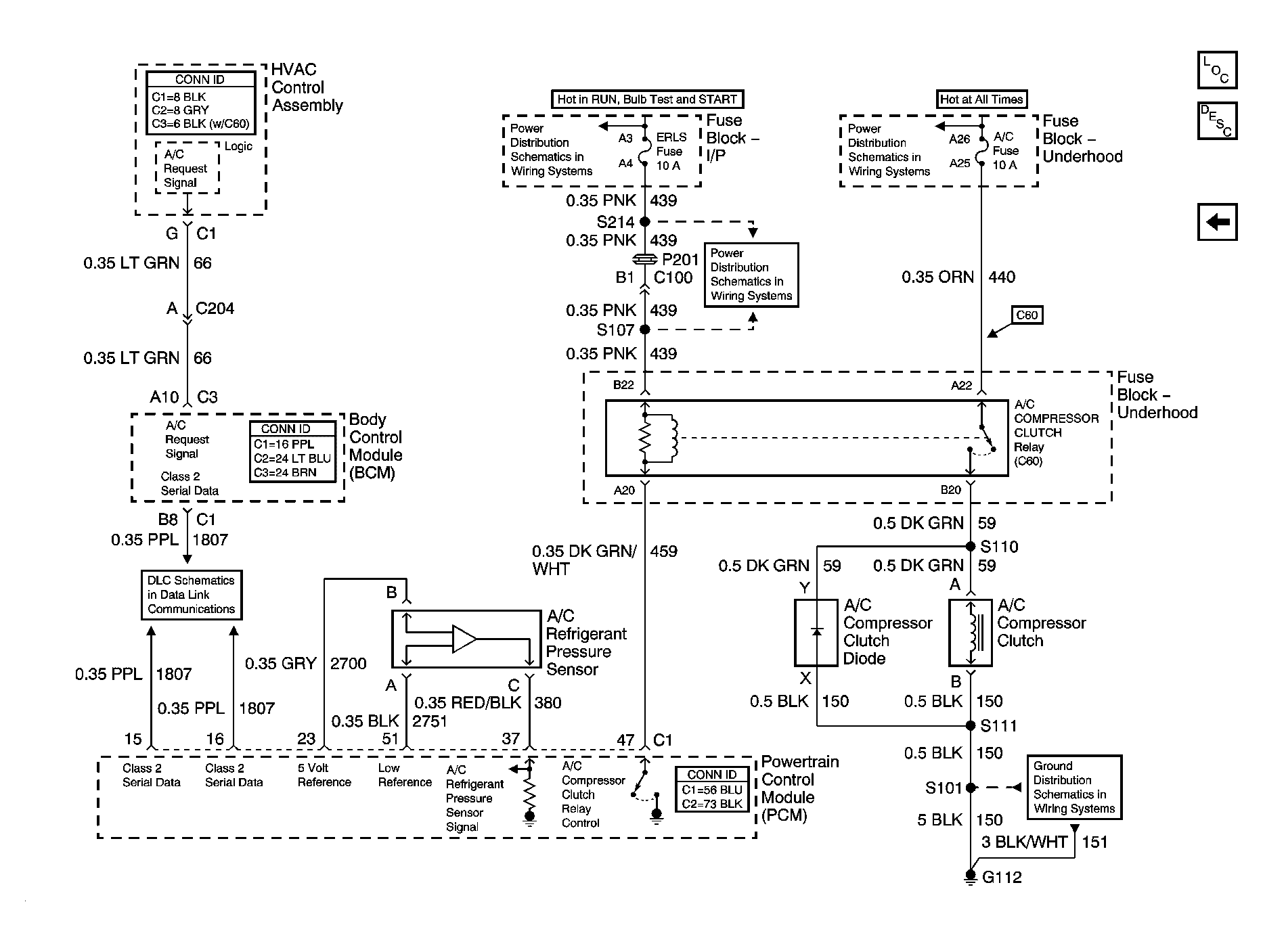

Fig 3: Compressor Controls Schematics

Courtesy of GENERAL MOTORS CORP.
