Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
  2. Disconnect the wire harness from the recirculation actuator.
  3. Remove the 2 screws holding the recirculation actuator housing to the HVAC module assembly.

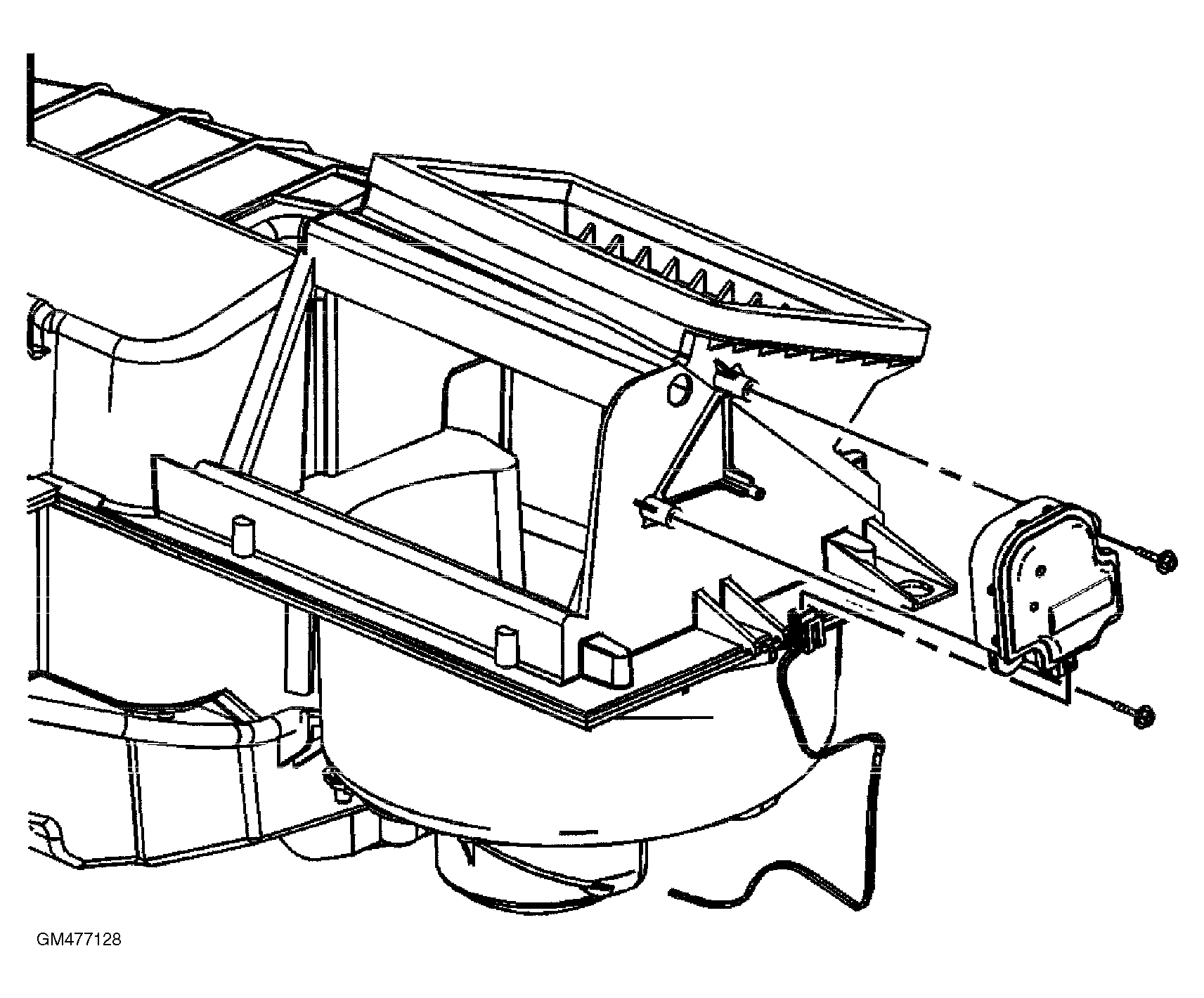

    Fig 1: Removing Recirculation Actuator
    GM477128Courtesy of GENERAL MOTORS CORP.
  4. Remove the recirculation actuator from the HVAC module assembly.
