Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the recirculation actuator on to the HVAC module.

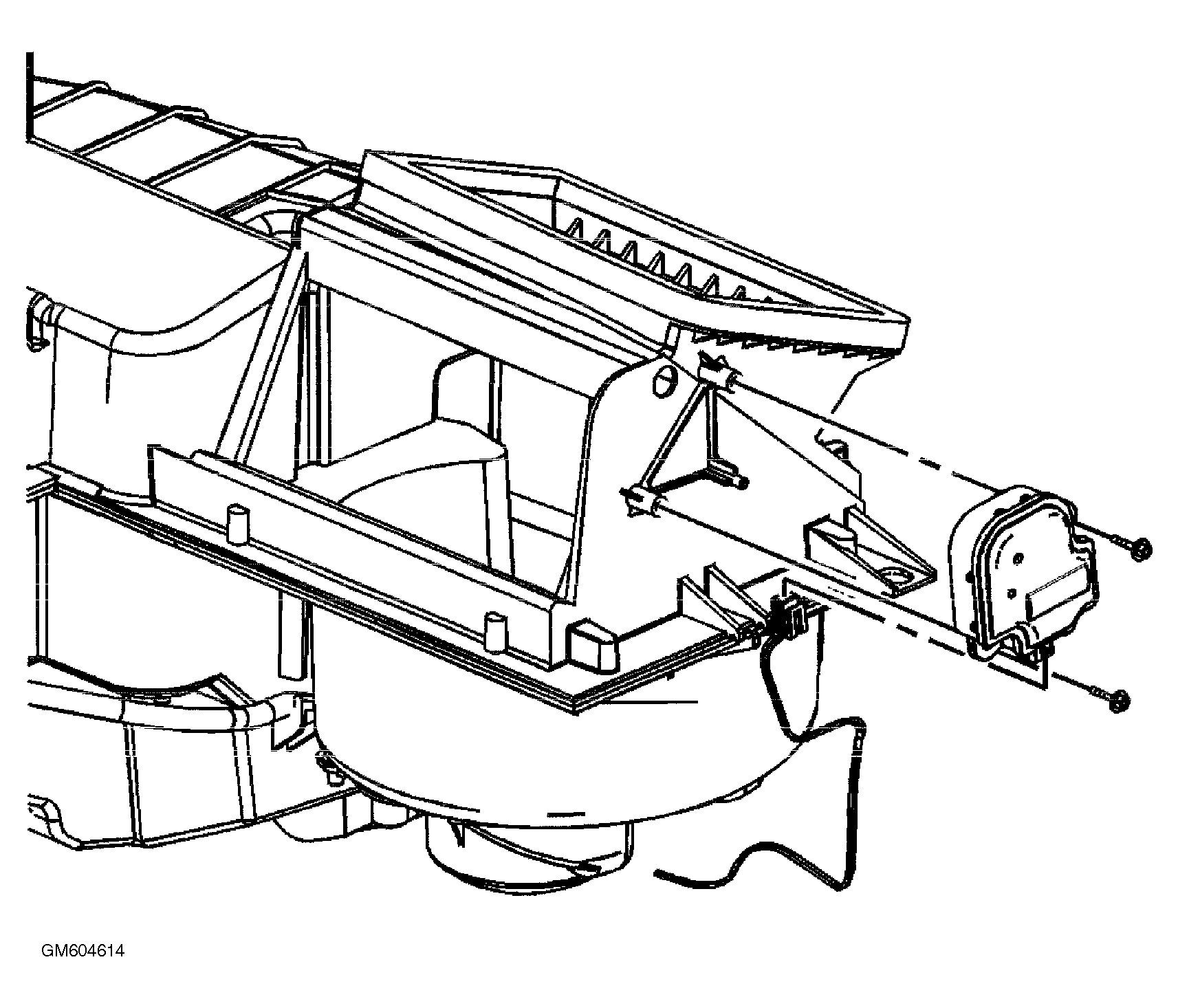

    Fig 1: Installing Recirculation Actuator
    GM604614Courtesy of GENERAL MOTORS CORP.
  2. Install the 2 screws holding the recirculation actuator housing to the HVAC module assembly.
  3. Connect the wiring harness to the recirculation actuator.
  4. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
