HVAC Component Views

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

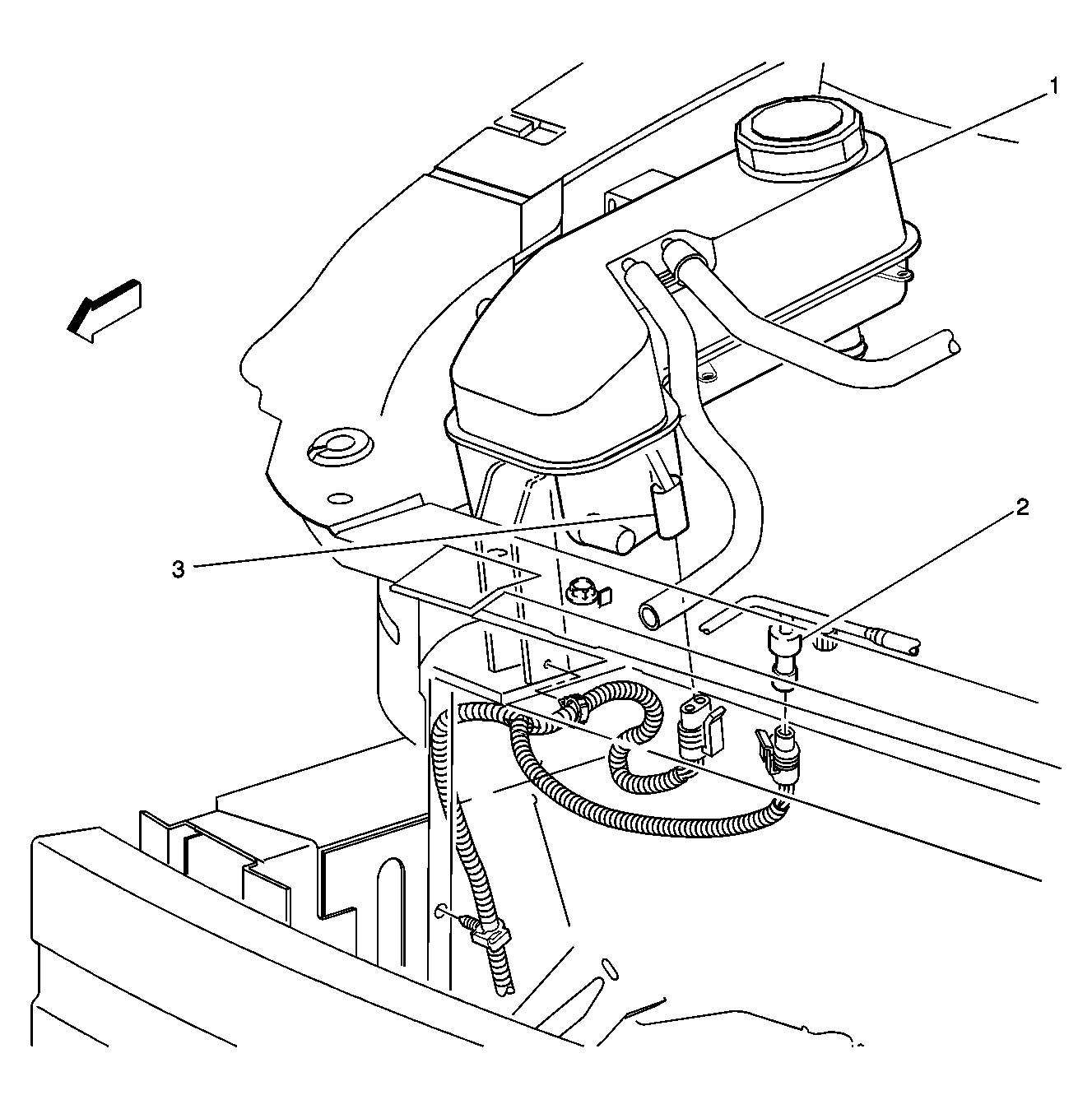

Fig 1: Right Side of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Surge Tank
2	A/C Refrigerant Pressure Sensor
3	Engine Coolant Level Switch

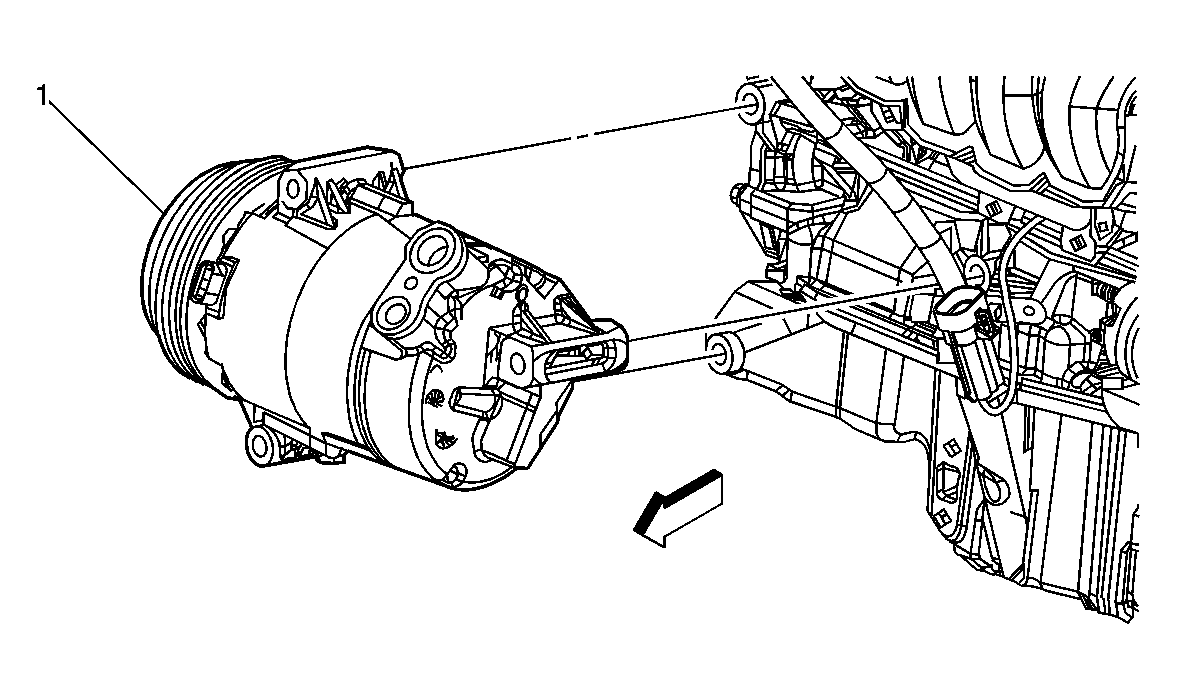

Fig 2: Front of Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch

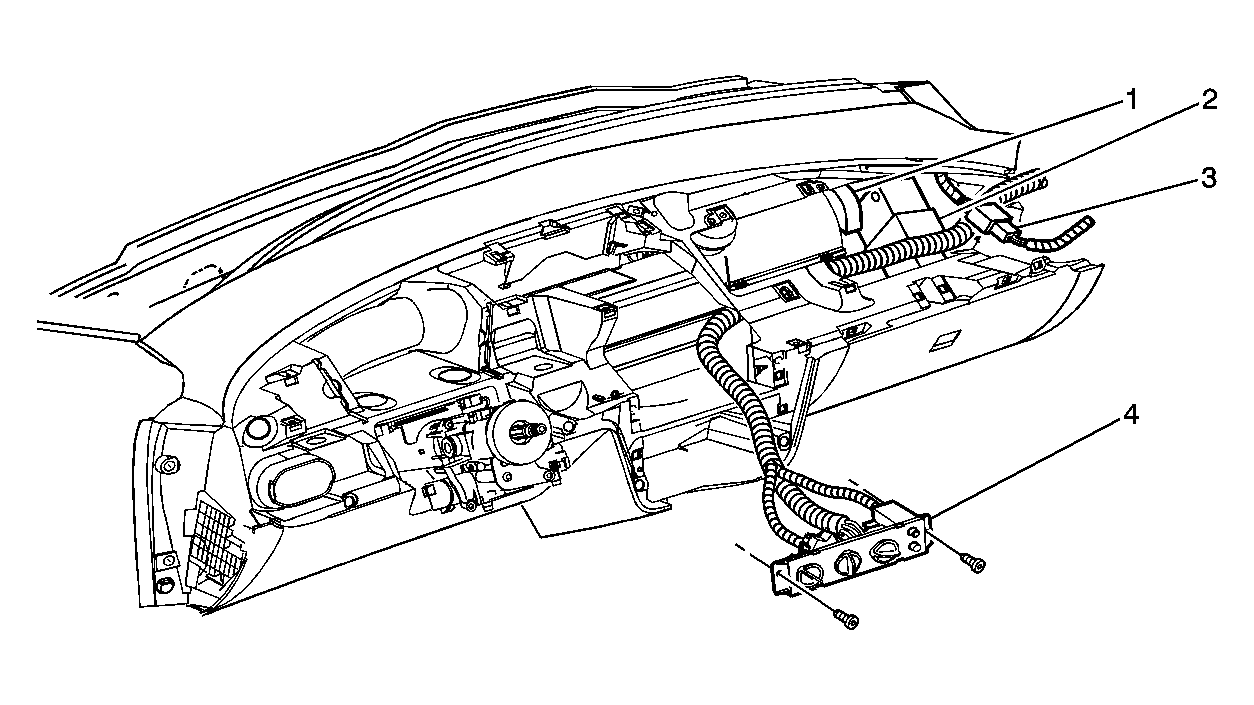

Fig 3: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Recirculation Door Actuator
2	Vehicle Communication Interface Module (VCIM)
3	C222
4	HVAC Control Assembly

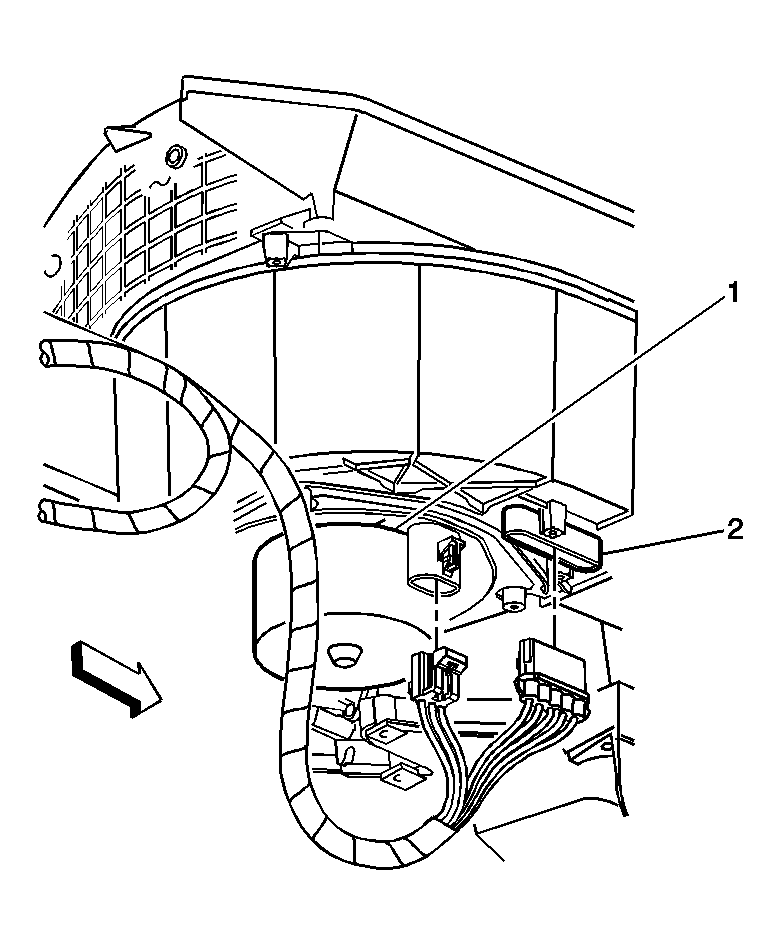

Fig 4: Under the Center of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor
2	Blower Motor Resistor
