Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool (1) in order to press the lower rear seat cushion retainer rearward.
    2. Fig 1: Loosening Lower Rear Seat Cushion Retainer
    GM279118Courtesy of GENERAL MOTORS CORP.

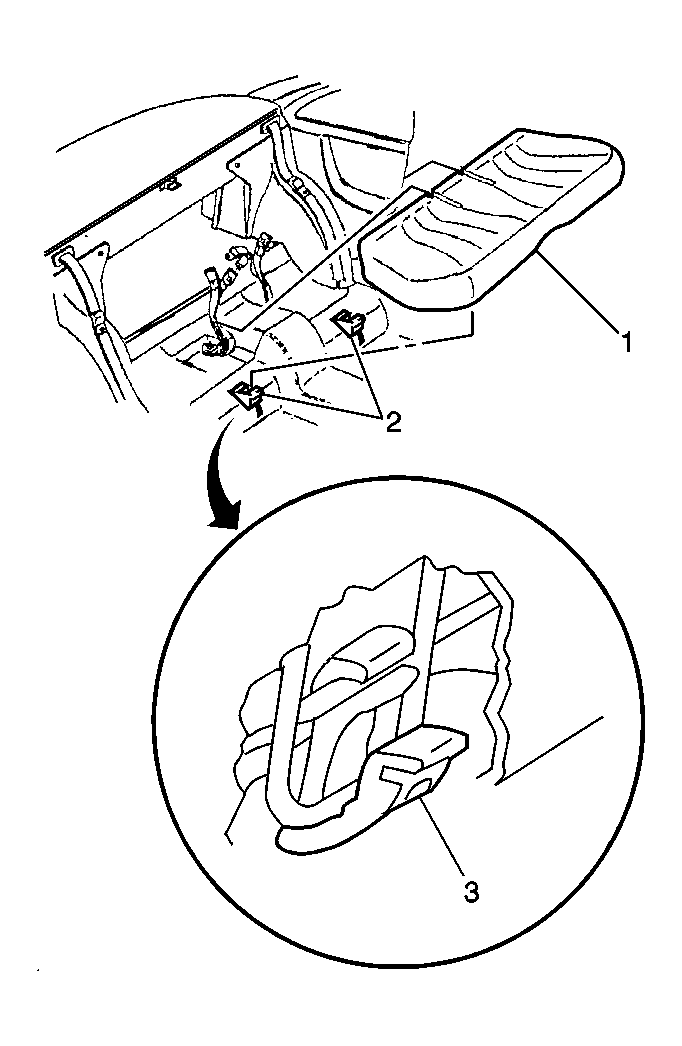

  2. Remove the rear seat cushion (1) lifting upward and out.
    Fig 2: Removing Rear Seat Cushion
    GM279120Courtesy of GENERAL MOTORS CORP.
