Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull off the roof auxiliary weatherstrip (2) from the roof flange beginning from the front pillar weatherstrip.
  2. Use a flat-bladed took to disengage the retainers (1) at the rear column.
  3. Remove the weatherstrip from the roof.

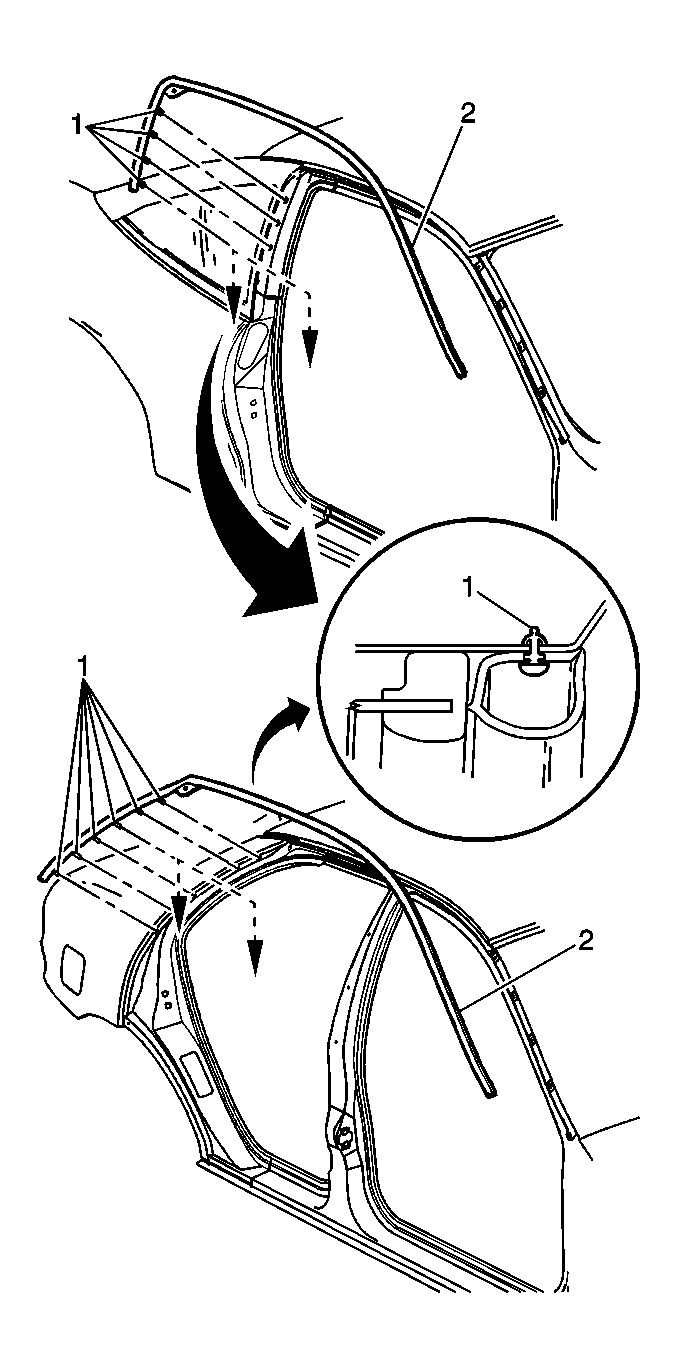

    Fig 1: Removing Weatherstrip Retainers
    GM279093Courtesy of GENERAL MOTORS CORP.
