Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a bead of weatherstrip adhesive GM P/N 12345096 to the following areas:
    1. The edge of the pinch-weld flange
    2. Around the entire perimeter of the rear compartment opening

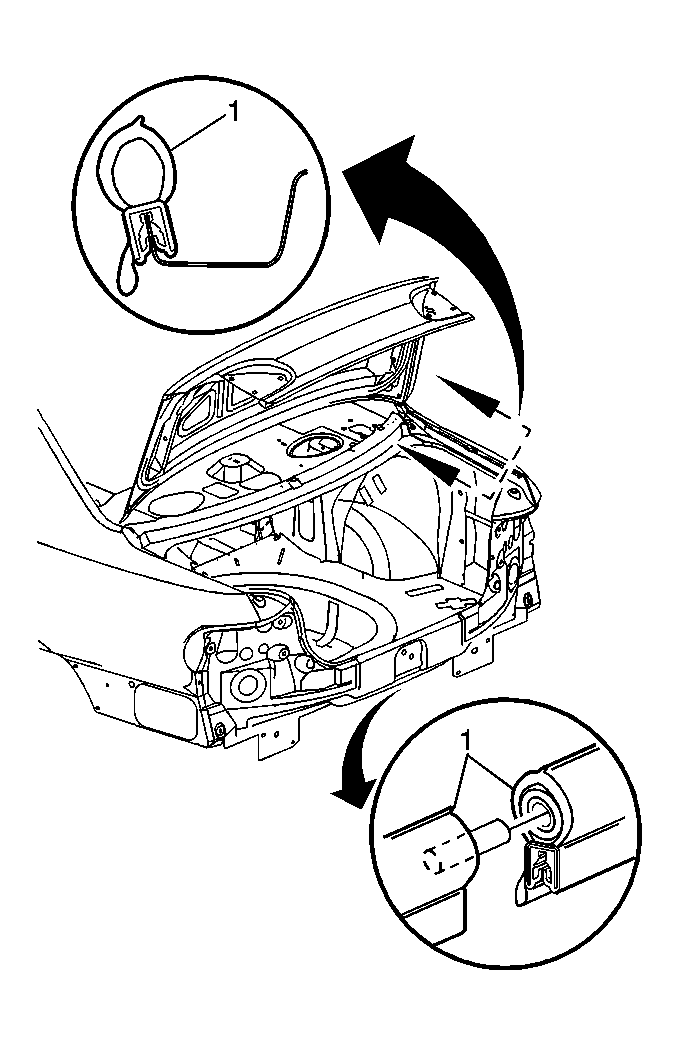

      3. Fig 1: Installing Rear Compartment Opening Weatherstrip
      GM277641Courtesy of GENERAL MOTORS CORP.
  2. Install the center of the weatherstrip onto the gutter flange. Begin at the forward center of the opening between the hinge arms.
  3. Push down by hand on the weatherstrip over the entire area until fully seated.
