Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

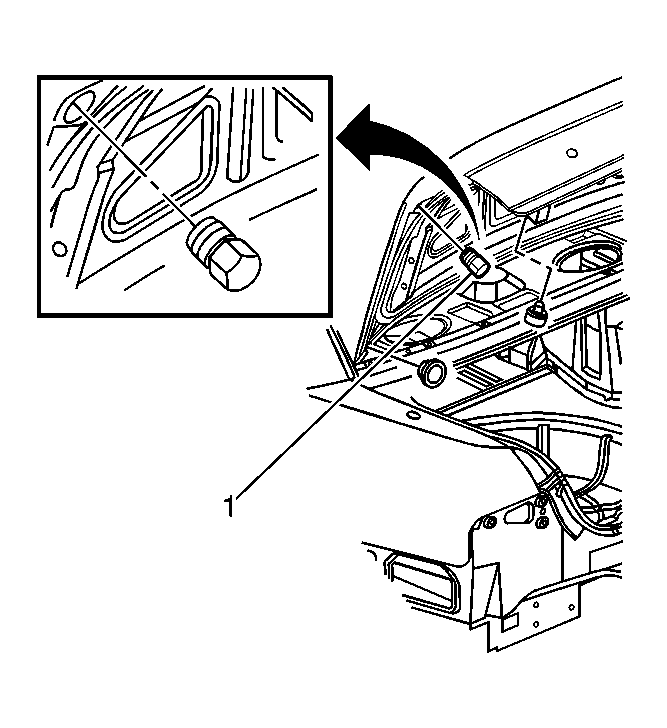

    Fig 1: Installing Rear Compartment Lid Outer Bumper
    GM277626Courtesy of GENERAL MOTORS CORP.
  1. Install the rear compartment lid outer bumper (1) by rotating the bumper until the lid is flush with the rear quarter.
  2. Close the rear compartment.
  3. Inspect the lid for proper fit.
