Body Rear End Component Views

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Rear Compartment Lid Release Switch Component View
GM798825Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Release Switch
2 Fuse Block - I/P

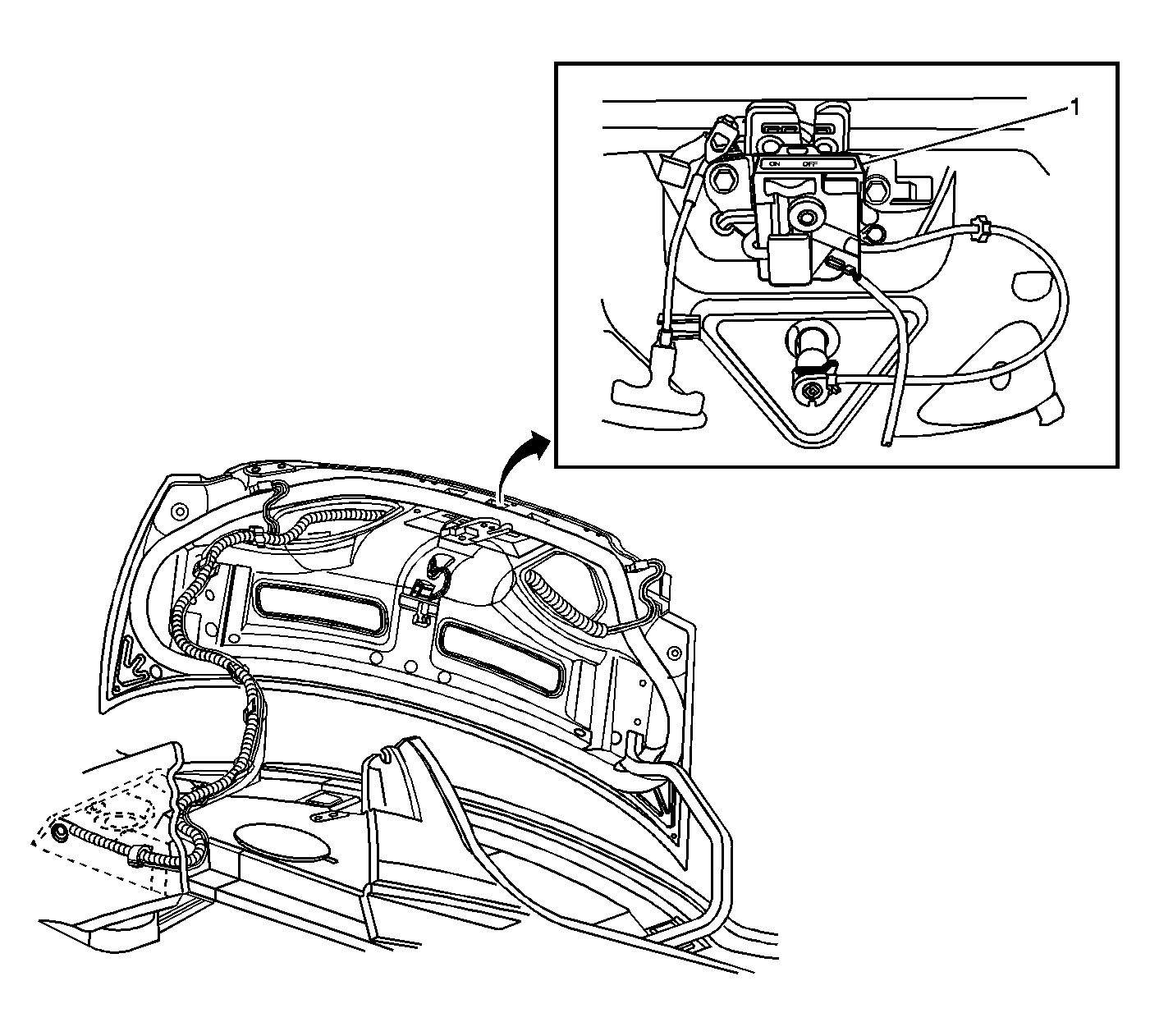

Fig 2: Rear Compartment Lid Release Actuator Component View
GM793635Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Release Actuator
