Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR Caution in Cautions and Notices.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
  2. Remove the SIR coil. Refer to Inflatable Restraint Steering Wheel Module Coil Replacement (Coil) in SIR.
  3. Remove and dispose of the bearing retainer using J 23653-SIR  and J 42137  .
    Fig 1: Compressing Cam Orientation Plate Using J 23653-SIR & J 42137
    GM338052Courtesy of GENERAL MOTORS CORP.
  4. Remove the shaft lock (1).
  5. Remove the turn signal cancel cam assembly (2).
  6. Remove the upper bearing spring (3).
  7. Remove the upper bearing inner race seat (4)
  8. Remove the inner race (5).

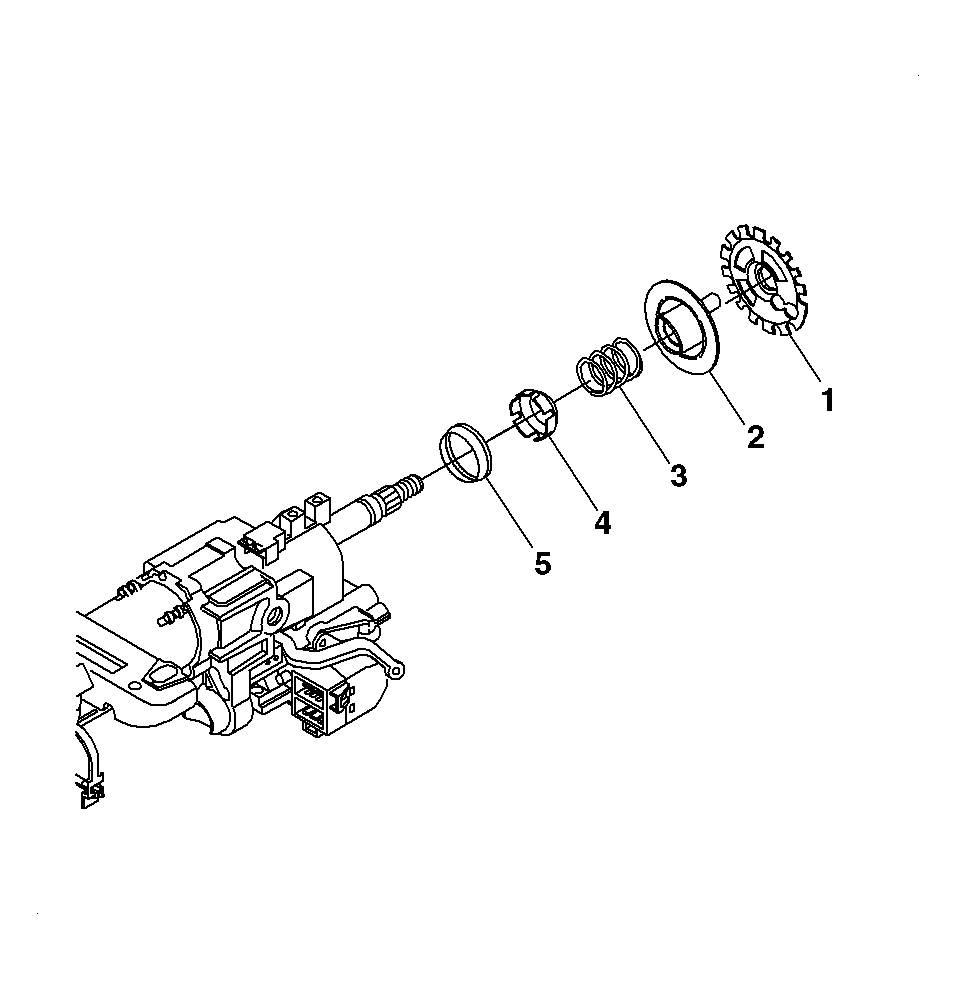

    Fig 2: Exploded View Of Turn Signal Cancel Cam Assembly
    GM372957Courtesy of GENERAL MOTORS CORP.
