Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR Caution in Cautions and Notices.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
  2. Remove the lock cylinder. Refer to Ignition Lock Cylinder Replacement (Without Key)  or Ignition Lock Cylinder Replacement (With Key) .
  3. Remove the multifunction switch. Refer to Multifunction, Turn Signal Switch Replacement .
  4. Remove the windshield wiper and washer switch. Refer to Wipers/Washer Switch Replacement in Wipers/Washer Systems.
  5. Remove the lock housing assembly. Refer to Steering Column Upper Housing Replacement .
  6. Remove the ignition switch assembly. Refer to Ignition Switch Replacement .
  7. Remove the tilt spring. Refer to Tilt Spring Replacement .
  8. Remove the lower shaft components. Refer to Steering Shaft, Lower Bearing, and Jacket Replacement (Tilt)  or Steering Shaft, Lower Bearing, and Jacket Replacement (Standard) .
  9. Remove the 2 pivot pins using J 21854-01  .

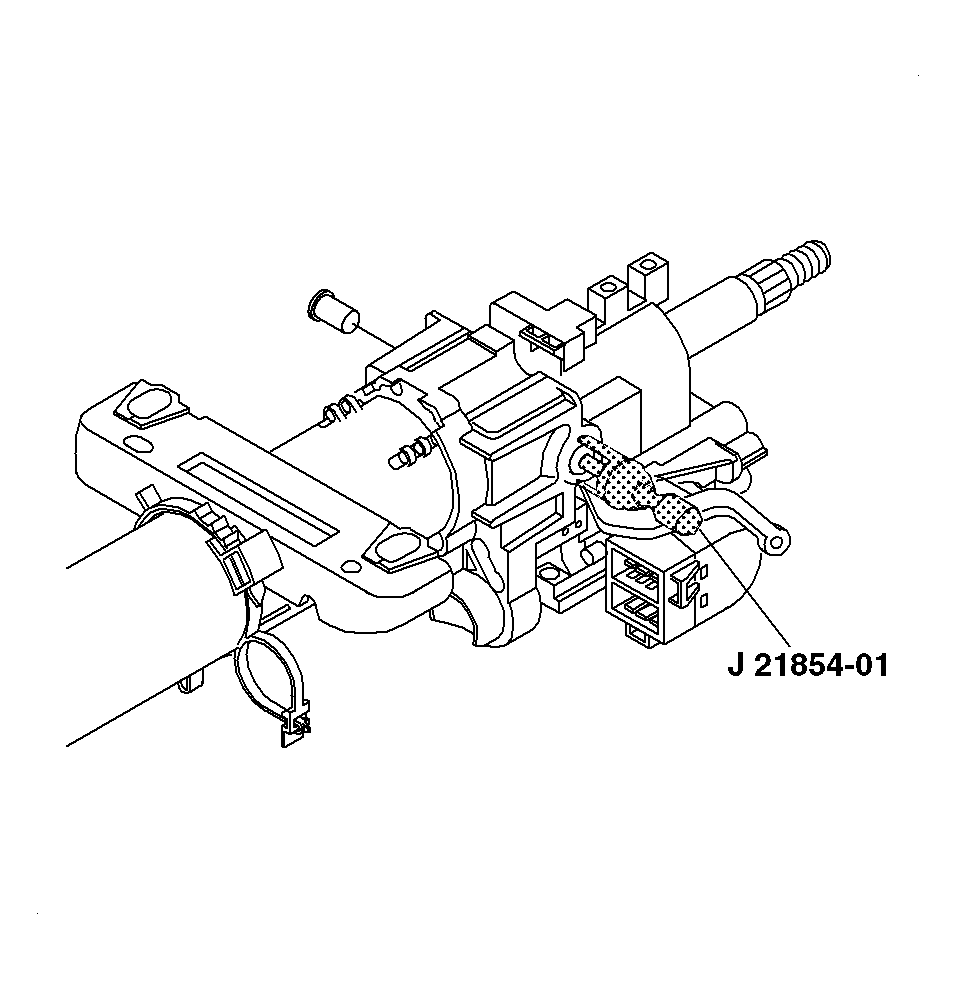

    Fig 1: Identifying J 21854-01
    GM372973Courtesy of GENERAL MOTORS CORP.
  10. Remove the bearing and housing assembly.
    Fig 2: View Of Steering Column Bearing And Housing Assembly
    GM372976Courtesy of GENERAL MOTORS CORP.
